004123401

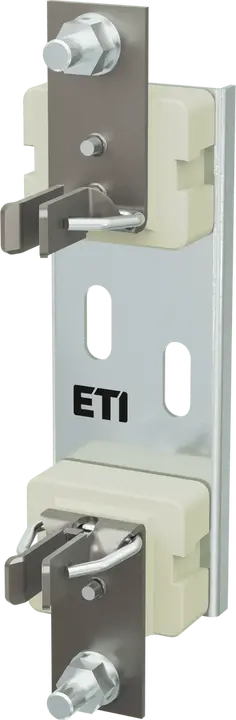

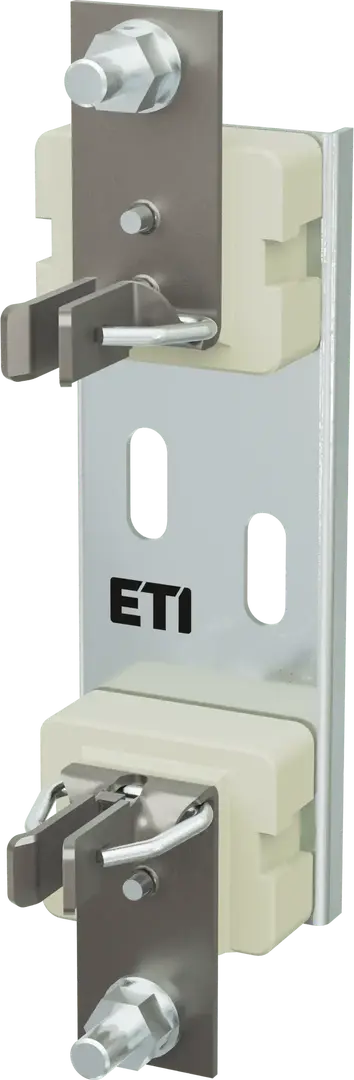

PK 2-100 M10-M10 1p 1000V Fuse - base
- ETI Code:
- 004123401
- IP rating:
- IP00
- Type description:
- PK
- Size:
- NH2/85
- Number of poles:
- 1
- Rated current:
- 400 A
- Rated AC voltage:
- 1000 V
- Rated DC voltage:
- 1000 V
- Breaking capacity AC:
- 200 kA
- Type of Installation:
- Base plate mounting
- Overvoltage Category:
- III
- Standards:
- IEC60269-2
- Ambient temperature:
- -25/55 °C
- Conventional free air thermal current with fuse links:
- 400 A
- Conventional free air thermal current with solid links:
- 500 A
- Max Permissable Power Dissipation per Fuse Link:
- 45 W
- Rated operating mode:
- uninterrupted
- Pollution Degree:
- 3
- Rated Frequency:
- 40/60 Hz
5 Documents
21 Logistics
Product
- Net weight of the product
- 0.878 kg
- Net width
- 65 mm
- Net height
- 245 mm
- Net depth
- 89.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895765035
- Basic packaging weight
- 0.944 kg
- Basic Packaging Dimensions Height
- 0.083 m
- Basic Packaging Dimensions Width
- 0.097 m
- Basic Packaging Dimensions Depth
- 0.327 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 8 pcs
- EAN code for a transport packaging
- 3838895765042
- Transport packaging weight
- 8.104 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.368 m
- Transport Packaging Dimensions Depth
- 0.368 m
- Transport packaging volume
- 0.029 m³
- Pallet quantity
- 144 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 400 A
ETIM Classification – Version 9.0
