001701158

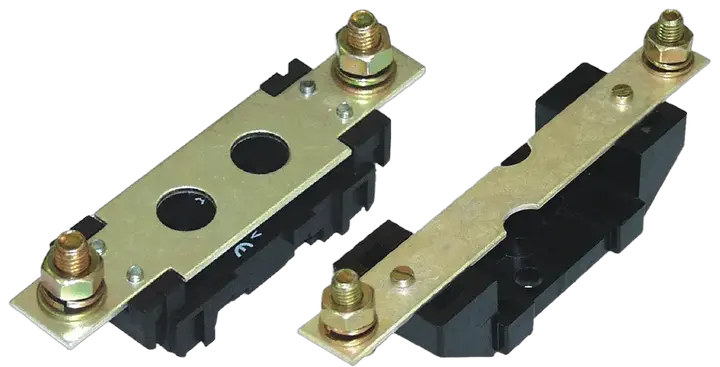

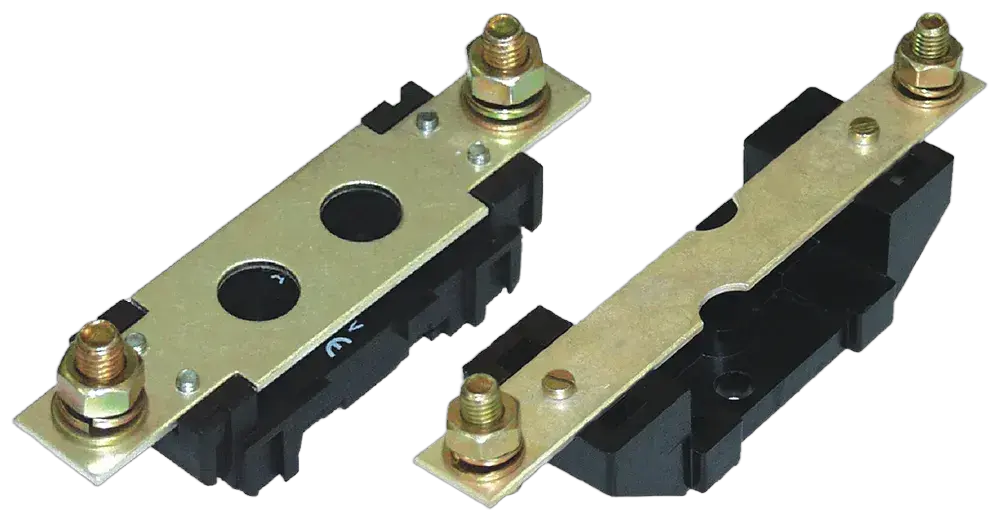

2PLNS - 1N A Neutral terminal
- ETI Code:
- 001701158
- Type description:
- PLNS - neutral
- Size:
- NH1
- Number of poles:
- 1
- Rated current:
- 250 A
- Rated AC voltage:
- 690 V
- Type of Installation:
- Base plate mounting
19 Logistics
Product
- EAN code for a single product
- 3838400041838
- Net weight of the product
- 0.6 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895584797
- Basic packaging weight
- 3 kg
- Basic Packaging Dimensions Height
- 90 mm
- Basic Packaging Dimensions Width
- 175 mm
- Basic Packaging Dimensions Depth
- 205 mm
- Basic packaging volume
- 3.229 dm³
Transport Packaging
- Transport packaging quantity
- 42 pcs
- EAN code for a transport packaging
- 3838895615699
- Transport packaging weight
- 26.7 kg
- Transport Packaging Dimensions Height
- 340 mm
- Transport Packaging Dimensions Width
- 350 mm
- Transport Packaging Dimensions Depth
- 460 mm
- Transport packaging volume
- 54.74 dm³
- Pallet quantity
- 1,554 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH1
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 250 A
ETIM Classification – Version 9.0
