001344002

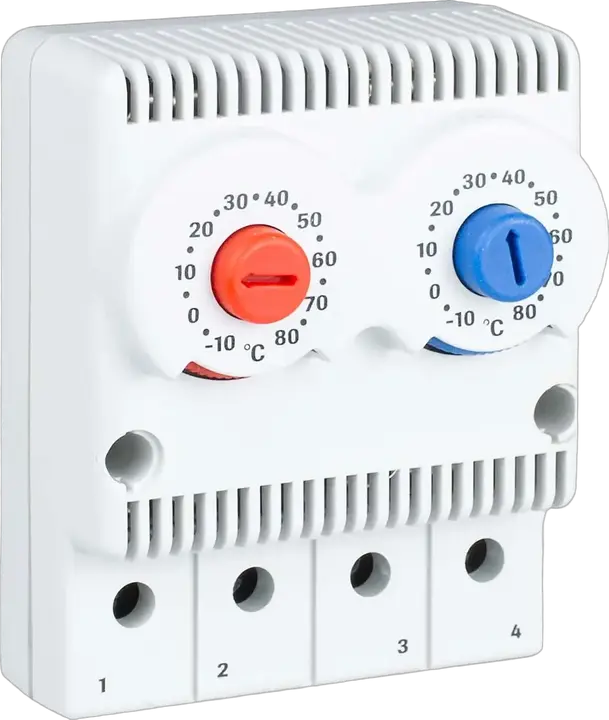

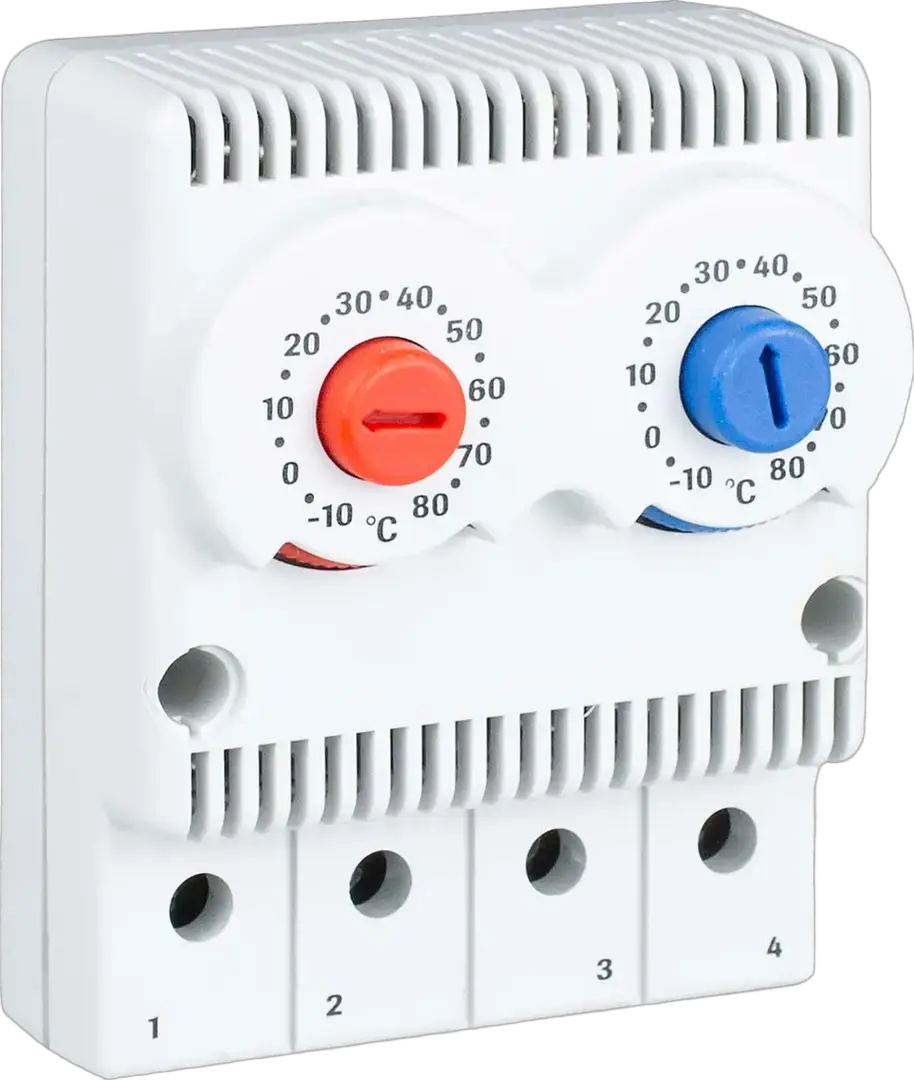

EF-TER2-NCNO Thermostat
- ETI Code:
- 001344002
- No. of NC contacts:
- 1
- Max Contact Current:
- 15 A
- No. of NO contacts:
- 1
- Type of Installation:
- TH 35
- Working Temperature:
- -10-80 °C
- Approvals:
- CE
- Rated AC voltage:
- 110/250 V
- Rated DC voltage:
- 60 V
- Accuracy (±):
- 3 K
- Rated hysteresis:
- 7 K
- Rated current:
- 10 A
- Color:
- RAL 7035
- Setting range:
- -10-80 °C
- Width:
- 58 mm
- Storage Temperature:
- -40-90 °C
- IP rating:
- IP20
- Height:
- 72.5 mm
- Clamping range:
- 0.75-2.5 mm²
- Connection type:
- Terminal block
- Depth:
- 44.5 mm
- Body material:
- PA66 UL94 V-0
22 Logistics
Product
- EAN code for a single product
- 3838400166425
- Net weight of the product
- 0.15 kg
- Net width
- 58.1 mm
- Net height
- 73.2 mm
- Net depth
- 43.71 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103567
- Basic packaging weight
- 0.15 kg
- Basic Packaging Dimensions Height
- 55 mm
- Basic Packaging Dimensions Width
- 100 mm
- Basic Packaging Dimensions Depth
- 55 mm
- Basic packaging volume
- 0.302 dm³
Transport Packaging
- Transport packaging quantity
- 9 pcs
- EAN code for a transport packaging
- 3838400103574
- Transport packaging weight
- 1.4 kg
- Transport Packaging Dimensions Height
- 215 mm
- Transport Packaging Dimensions Width
- 115 mm
- Transport Packaging Dimensions Depth
- 200 mm
- Transport packaging volume
- 4.945 dm³
- Pallet quantity
- 1,440 pcs
- Customs tariff
- 90321080
8 ETIM
- Width
- 58 mm
- Voltage type
- AC
- Degree of protection (IP)
- IP20
- Depth
- 44.5 mm
- Colour
- Other
- Height
- 72.5 mm
- Operating voltage AC 50 Hz(Min)
- 110 V
- Operating voltage AC 50 Hz(Max)
- 250 V
ETIM Classification – Version 9.0
