001344001

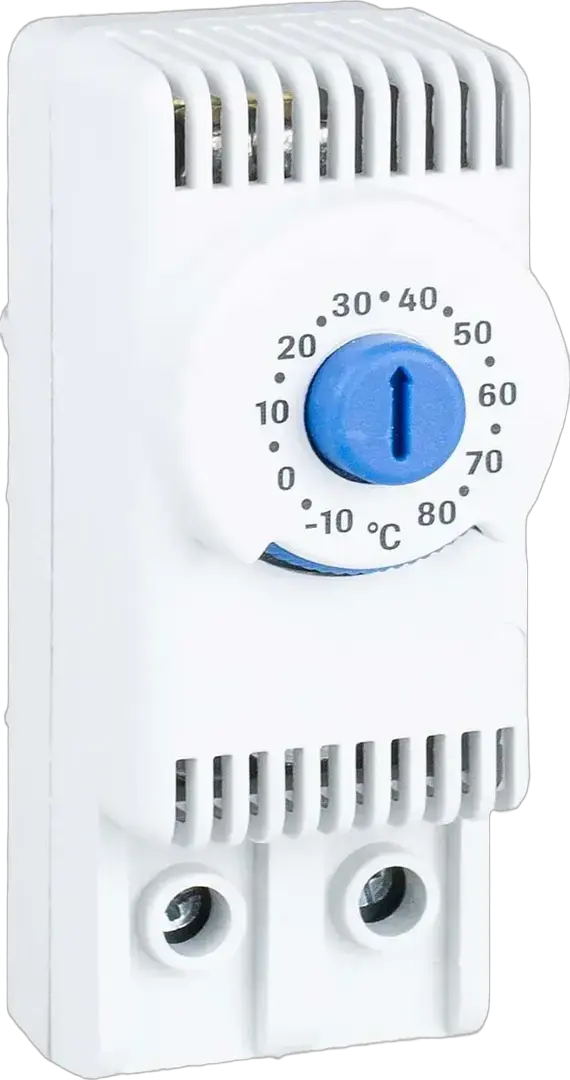

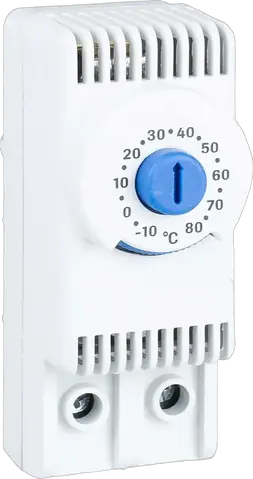

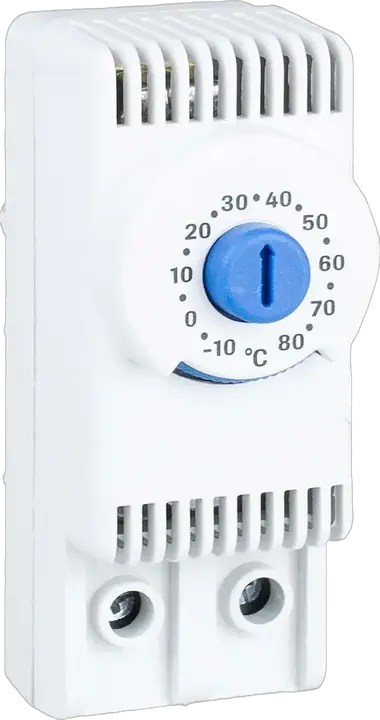

EF-TER-NO Thermostat
- ETI Code:
- 001344001
- Max Contact Current:
- 15 A
- No. of NO contacts:
- 1
- Type of Installation:
- TH 35
- Working Temperature:
- -10-80 °C
- Approvals:
- CE
- Rated AC voltage:
- 110/250 V
- Rated DC voltage:
- 12/60 V
- Accuracy (±):
- 3 K
- Rated hysteresis:
- 7 K
- Rated current:
- 10 A
- Color:
- RAL 7035
- Setting range:
- -10-80 °C
- Width:
- 29 mm
- Storage Temperature:
- -40-90 °C
- IP rating:
- IP20
- Height:
- 72 mm
- Clamping range:
- 0.75-2.5 mm²
- Connection type:
- Terminal block
- Depth:
- 46 mm
- Body material:
- PA66 UL94 V-0
22 Logistics
Product
- EAN code for a single product
- 3838400166418
- Net weight of the product
- 0.072 kg
- Net width
- 29.1 mm
- Net height
- 72.8 mm
- Net depth
- 46.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103529
- Basic packaging weight
- 0.076 kg
- Basic Packaging Dimensions Height
- 29 mm
- Basic Packaging Dimensions Width
- 72 mm
- Basic Packaging Dimensions Depth
- 46 mm
- Basic packaging volume
- 0.096 dm³
Transport Packaging
- Transport packaging quantity
- 25 pcs
- EAN code for a transport packaging
- 3838400103536
- Transport packaging weight
- 1.9 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 105 mm
- Transport Packaging Dimensions Depth
- 240 mm
- Transport packaging volume
- 5.544 dm³
- Pallet quantity
- 3,375 pcs
- Customs tariff
- 90321080
