001101176

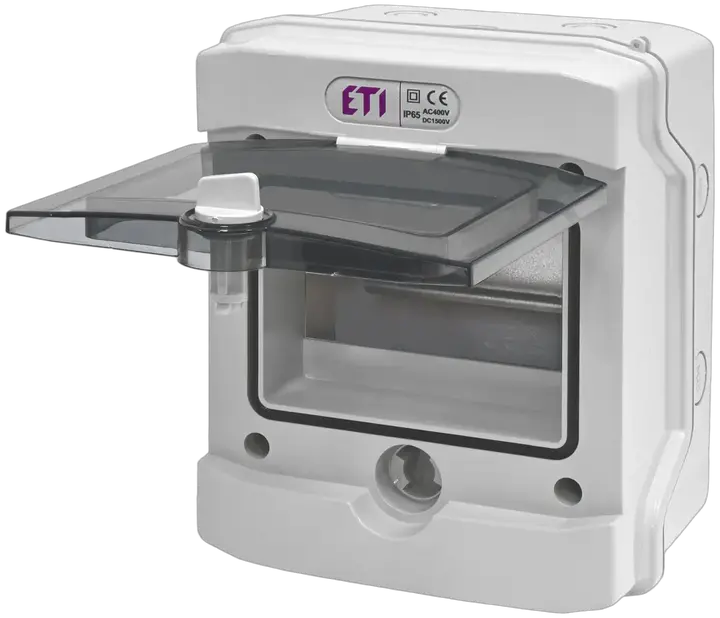

ECH-6G Distribution box
- ETI Code:
- 001101176
- Catalogue Group:
- ECH wall mounted plastic distribution boxes IP65
- Type of Installation:
- Surface mounted
- IP rating:
- IP65
- Frame size (Nr. of rows):
- 1
- No. of modules (total/per row):
- 6
- Door (material, color):
- transparent, plastic
- Enclosure base (material, color):
- plastic, grey
- Number of PE/N terminals (connections):
- 6
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 1500 V
- Protection Class:
- II
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
21 Logistics
Product
- Net weight of the product
- 0.6 kg
- Net width
- 169.5 mm
- Net height
- 206.6 mm
- Net depth
- 132.69 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895936138
- Basic packaging weight
- 0.6 kg
- Basic Packaging Dimensions Height
- 165 mm
- Basic Packaging Dimensions Width
- 201 mm
- Basic Packaging Dimensions Depth
- 120 mm
- Basic packaging volume
- 3.98 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895936145
- Transport packaging weight
- 4.652 kg
- Transport Packaging Dimensions Height
- 655 mm
- Transport Packaging Dimensions Width
- 215 mm
- Transport Packaging Dimensions Depth
- 173 mm
- Transport packaging volume
- 24.363 dm³
- Pallet quantity
- 360 pcs
- Customs tariff
- 85381000
19 ETIM
- Width
- 165 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Neutral terminal block
- Yes
- Transparent cover/door
- Yes
- Degree of protection (IP)
- IP65
- Mounting method
- Surface mounted
- Signal passing door
- Yes
- Earthing terminal block
- Yes
- UV resistant
- Yes
- Number of rows
- 1
- Housing material
- Plastic
- Depth
- 118 mm
- Colour
- Grey
- Type of door
- Single
- Cover model
- Closed
- Height
- 201 mm
- Width in number of modular spacings
- 6
- RAL-number
- 7,035
ETIM Classification – Version 9.0
