Plastic boards

Introduction

ETI plastic distribution boards DIDO are designed for the installation and organization of modular protective and control devices in residential, commercial and selected industrial applications. The range includes surface-mounted and flush-mounted versions for indoor installations, as well as IP65 wall-mounted boards for environments requiring increased protection against dust and moisture. Depending on the series, distribution boards are available with transparent or white plastic doors and in a wide range of modular capacities.

EC 1+1

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP30
Frame size (Nr. of rows): 1
No. of modules (total/per row): 2
Door (material, color): white, plastic
Enclosure base (material, color): plastic, white
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

EC 3+1

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP30
Frame size (Nr. of rows): 1
No. of modules (total/per row): 4
Door (material, color): white, plastic
Enclosure base (material, color): plastic, white
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

EC 3+2

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP30
Frame size (Nr. of rows): 1
No. of modules (total/per row): 5
Door (material, color): white, plastic
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 4
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

ECT 1x24PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 24
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 13
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

ECT4PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 4
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 4
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Protection Class: II
Rated AC voltage: 400 V
Rated current: 63 A

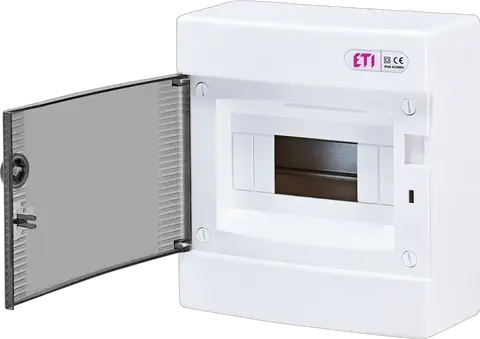

ECT8PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 8
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 8
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Protection Class: II
Rated AC voltage: 400 V
Rated current: 63 A

ECT12PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 12
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 10
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Protection Class: II
Rated AC voltage: 400 V
Rated current: 63 A

ECT 1x18PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 18
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 13
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

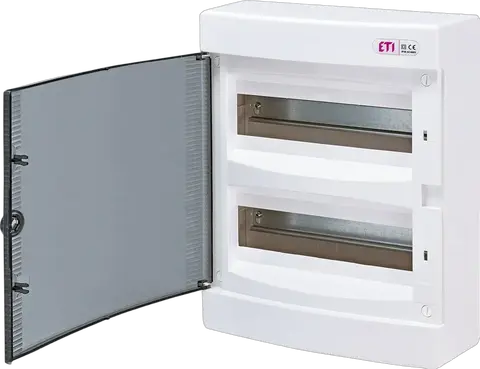

ECT24PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 2
No. of modules (total/per row): 24/12
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 13
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

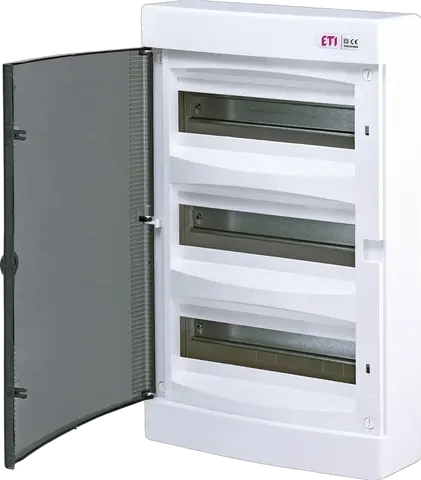

ECT36PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 3
No. of modules (total/per row): 36/12
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 15
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

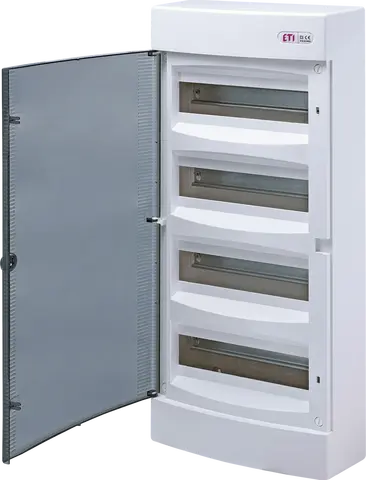

ECT48PT

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 4
No. of modules (total/per row): 48/12
Door (material, color): plastic, transparent
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 20
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

ACT48PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 4
No. of modules (total/per row): 48/12
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 20
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

ECT 1x24PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 24
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 13
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

ECT4PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 4
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 4
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Protection Class: II
Rated AC voltage: 400 V
Rated current: 63 A

ECT8PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 8
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 8
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Protection Class: II
Rated AC voltage: 400 V
Rated current: 63 A

ECT12PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 12
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 10
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Protection Class: II
Rated AC voltage: 400 V
Rated current: 63 A

ECT 1x18PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 1
No. of modules (total/per row): 18
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 13
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

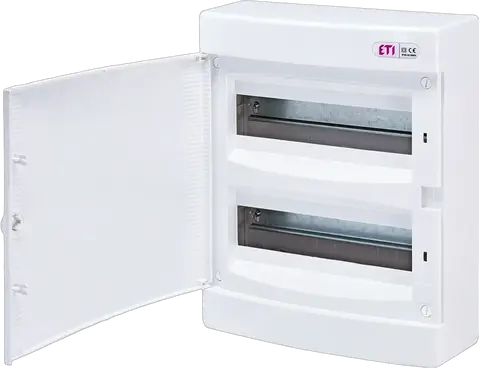

ECT24PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 2
No. of modules (total/per row): 24/12
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 13
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

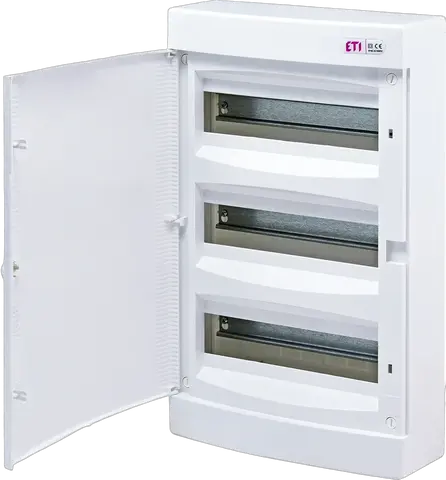

ECT36PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 3
No. of modules (total/per row): 36/12
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 15
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A

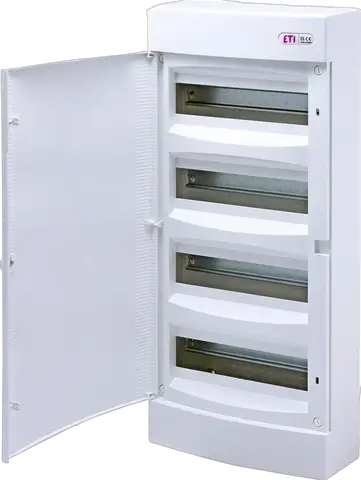

ECT48PO

Class name: Distribution box
Type of Installation: Surface mounted
IP rating: IP40
Frame size (Nr. of rows): 4
No. of modules (total/per row): 48/12
Door (material, color): plastic, white
Enclosure base (material, color): plastic, white
Number of PE/N terminals (connections): 20
Glow wire test (°C): 650 °C
Rated DC voltage: 400 V
Rated AC voltage: 400 V
Rated current: 63 A
