004656754

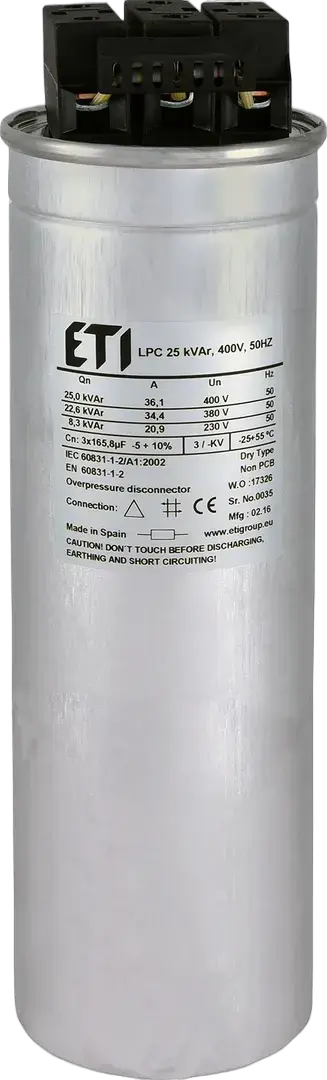

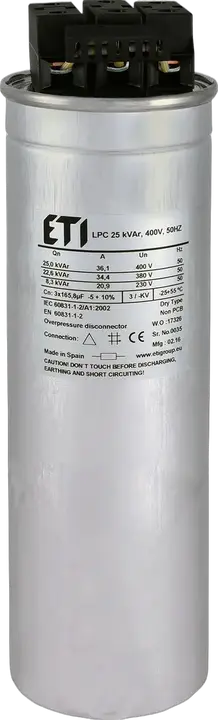

LPC 25 kVAr, 400V, 50Hz Capacitor
- ETI Code:
- 004656754
- Rated DC voltage:
- 400 V
- Catalogue Group:
- LPC
- Reactive power:
- 25 kVAr
- Rated AC voltage:
- 400 V
- Rated capacitance:
- 3x165.8
- Rated current:
- 36.1 A
- Connection type:
- Screw terminal
- Type description:
- Dry
14 Logistics
Product
- Net weight of the product
- 2.9 kg
- Net width
- 125.4 mm
- Net height
- 357 mm
- Net depth
- 125.37 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895696742
- Transport packaging weight
- 3.03 kg
- Transport Packaging Dimensions Height
- 355 mm
- Transport Packaging Dimensions Width
- 110 mm
- Transport Packaging Dimensions Depth
- 110 mm
- Transport packaging volume
- 4.296 dm³
- Pallet quantity
- 95 pcs
- Customs tariff
- 85321000
3 ETIM
- Capacity
- 165.8 µF
- Length
- 310 mm
- Diameter
- 100 mm
ETIM Classification – Version 9.0
