004773088
Obsolete

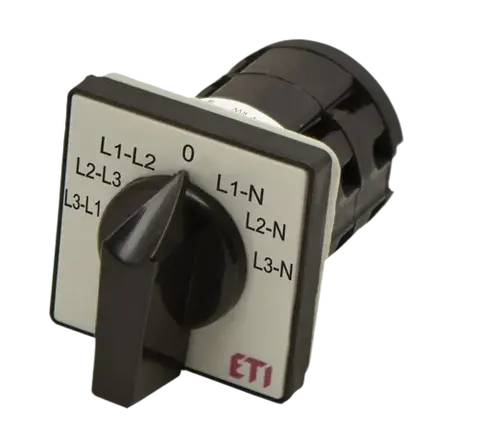

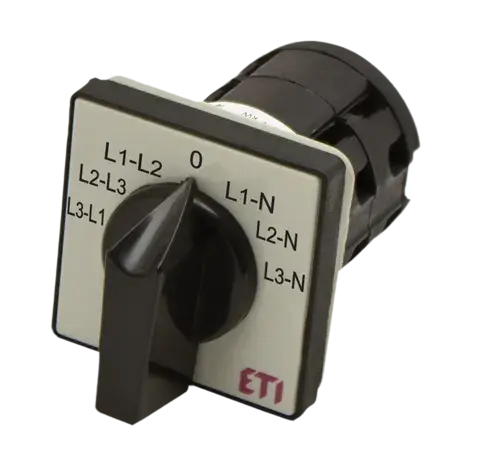

* CS 10 66 U Cam switch
- ETI Code:
- 004773088
- Rated current:
- 10 A
- Catalogue Group:
- Rotary cam switch
- Type of Installation:
- Front mounting
- Type description:
- V 3L
- Thermal current Ith:
- 10 A
- Rated operational current Ie AC-21 at 400V:
- 10 A
- Max. rated operational voltage (AC):
- 400 V
- Rated Insulation Voltage:
- 690 V
- Operation:
- Voltmeter switches
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.14 kg
- Net width
- 50.2 mm
- Net height
- 69.3 mm
- Net depth
- 94.32 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895660903
- Basic packaging weight
- 0.14 kg
- Basic packaging volume
- 0.417 dm³
Transport Packaging
- Transport packaging quantity
- 84 pcs
- EAN code for a transport packaging
- 3838895660910
- Transport packaging weight
- 11.76 kg
- Transport packaging volume
- 35.028 dm³
- Pallet quantity
- 4,284 pcs
- Customs tariff
- 85363010
1 ETIM
- With zero (off) position
- ✓
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
18 Tags
004773088Cam switch* CS 10 66 UETISWITCHRotary cam switchRotary cam switchRotary cam switchVoltmeter switches3 line and 3 phaseInternationalModular, toggle and rotary switches ETISWITCHRotary cam switchesMax. rated operational voltage (AC): 400 VThermal current Ith: 10 AOperation: Voltmeter switchesRated Insulation Voltage: 690 VRated operational current Ie AC-21 at 400V: 10 ACam switch Thermal current Ith: 10 A Rated operational current Ie AC-21 at 400V: 10 A Operation: Voltmeter switches
