761900104
Obsolete

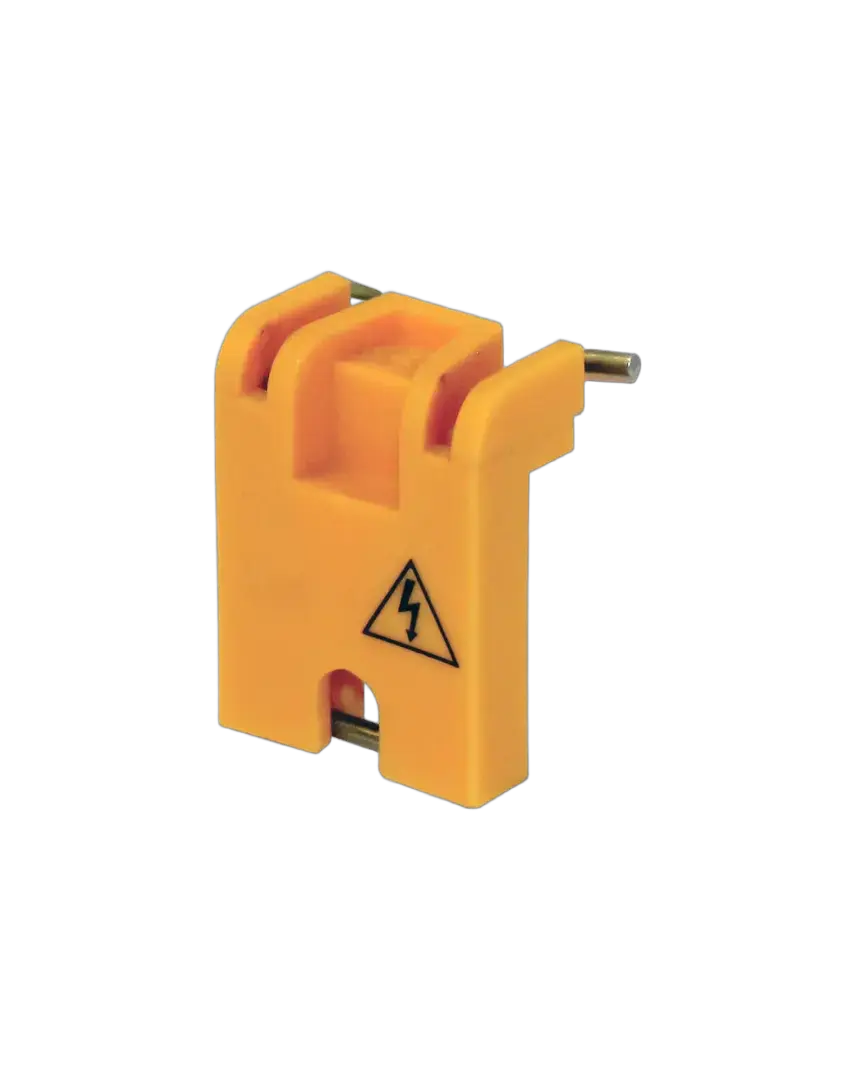

*Locking device ETIMAT P10 Accessories ETIMAT
- ETI Code:
- 761900104
- Short circuit capacity:
- 10 kA
- Rated current:
- 4 A
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Depth:
- 75 mm
- Function accessories:
- Lock
- Number of poles:
- 4
- Catalogue Group:
- Accessories ETIMAT 6/10
- Pollution Degree:
- 2
- Overvoltage Category:
- III
- IP rating:
- IP20
- Function:
- Locking device
- Rated Frequency:
- 50/60 Hz
- To use with:
- ETIMAT P10, P10-QC, P10-DC
4 Documents
11 Logistics
Product
- Net weight of the product
- 0.003 kg
- Net width
- 18.6 mm
- Net height
- 22.5 mm
- Net depth
- 11.55 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 4250327101003
- Transport packaging weight
- 0.002 kg
- Transport packaging volume
- 0.039 dm³
- Pallet quantity
- 50,000 pcs
- Customs tariff
- 83016000
