002159312

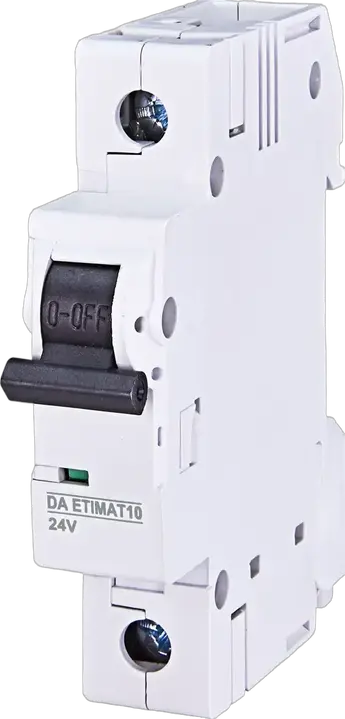

DA ETIMAT 10 24V AC/DC Shunt trip release
- ETI Code:
- 002159312
- Rated AC voltage:
- 24 V
- Rated DC voltage:
- 24 V
- Function accessories:
- Shunt trip release
- Catalogue Group:
- Accessories ETIMAT 6/10
- Application:
- EN 60715
- DC rated control supply voltage Uc:
- 24 V
- Function:
- Shunt trip release
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Max. inrush current:
- 3.6 A
- Standards:
- EN 60715
- To use with:
- ETIMAT 6
21 Logistics
Product
- Net weight of the product
- 0.103 kg
- Net width
- 18 mm
- Net height
- 87.2 mm
- Net depth
- 72.92 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895403401
- Basic packaging weight
- 0.119 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.037 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 54 pcs
- EAN code for a transport packaging
- 3838895403418
- Transport packaging weight
- 6.776 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 2,808 pcs
- Customs tariff
- 85389099
10 ETIM
- Voltage type
- AC/DC
- Voltage type for actuating
- AC/DC
- Device fitting
- Miniature circuit breaker (MCB)
- Rated voltage
- 24 V
- Function
- Remote release
- Width in number of modular spacings
- 1
- Rated control supply voltage DC(Min)
- 24 V
- Rated control supply voltage AC 50 Hz(Min)
- 24 V
- Rated control supply voltage AC 50 Hz(Max)
- 24 V
- Rated control supply voltage DC(Max)
- 24 V
ETIM Classification – Version 9.0
