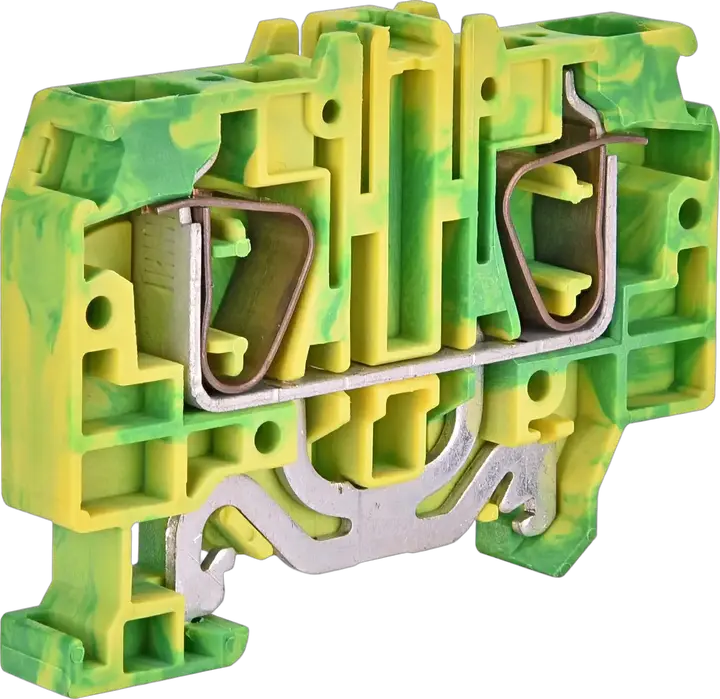

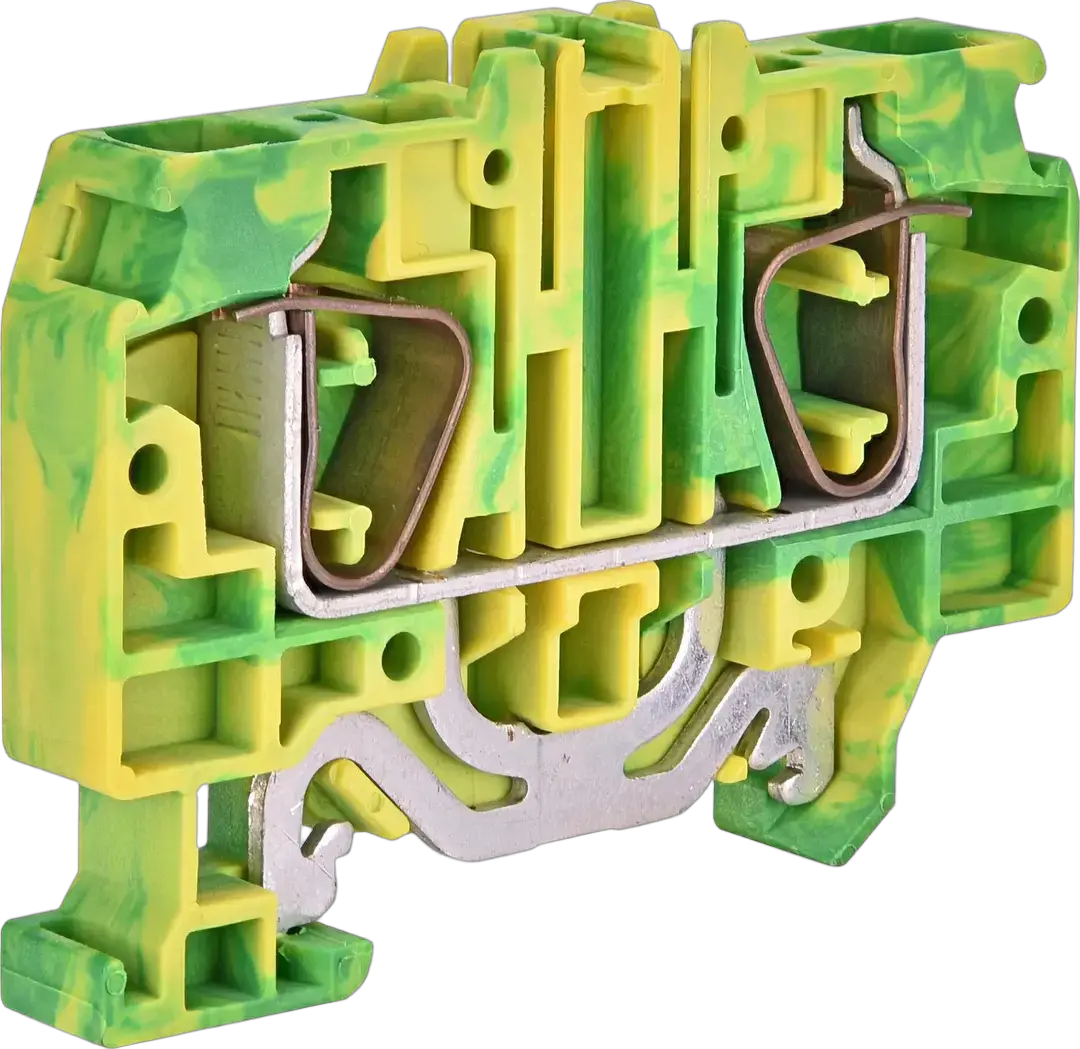

ESP-HTE.10 Earthing connections

ETI Code:: 003903194
Catalogue Group:: ES Spring Clamp Terminal Blocks
Type of Installation:: TH 35
Type description:: ES Spring Clamp Terminal Blocks
Level:: Single
Color:: Yellow, Green
Rated cross section:: 10 mm²
Rated impulse withstand voltage Uimp:: 12 kV
Cross connection:: No
End section needed:: Yes

Accessories

Product

EAN code for a single product: 3838895862673
Net weight of the product: 29 g
Net width: 10 mm
Net height: 71 mm
Net depth: 52.5 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838895789888
Transport packaging weight: 0.95 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1.98 dm³
Pallet quantity: 13,500 pcs
Customs tariff: 85369010

Width: 10 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Yes
Type of electrical connection 2: Spring clamp connection
Colour: Green/yellow
Height: 53 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1.5 mm²
Connectable conductor cross section multi-wired(Min): 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1.5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²
Connectable conductor cross section multi-wired(Max): 16 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²

ETIM Classification – Version 9.0
