003903349

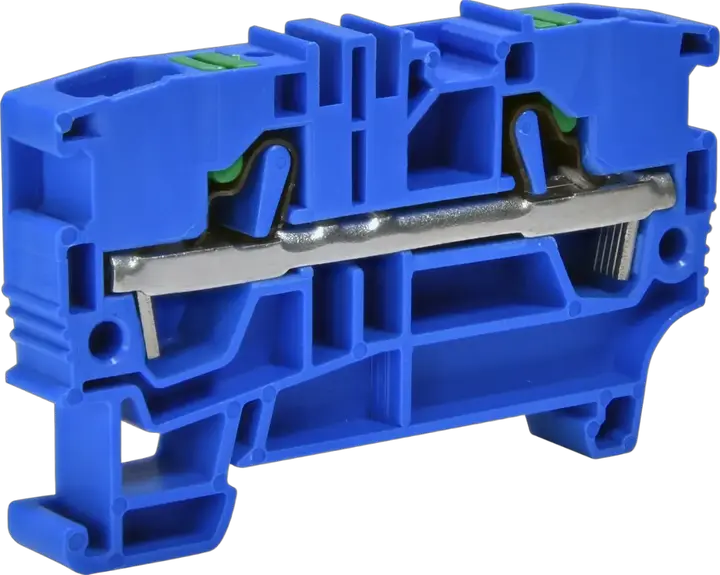

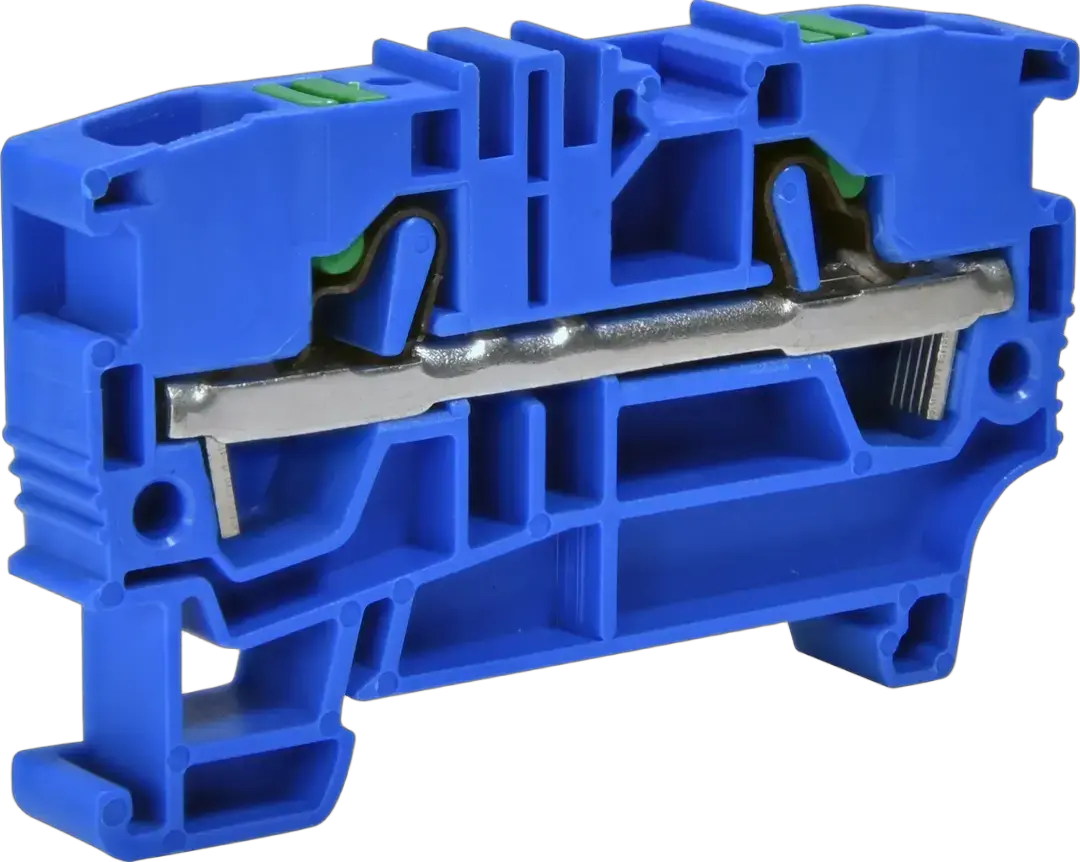

ESH-EFC.6B Neutral terminal
- ETI Code:
- 003903349
- Rated AC voltage:
- 1000 V
- Rated DC voltage:
- 1000 V
- Type of Installation:
- TH 35
- Type description:
- ESH Push-in Spring Clamp Terminal Blocks
- Level:
- Single
- Color:
- Blue
- Rated cross section:
- 6 mm²
- Rated impulse withstand voltage Uimp:
- 8 kV
- Max current with rated cross-section:
- 41 mm²
- Connectable conductor cross section solid-core:
- 210 mm²
- Cross connection:
- Yes
- End section needed:
- Yes
4 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400117809
- Net weight of the product
- 0.016 kg
- Net width
- 16 mm
- Net height
- 85 mm
- Net depth
- 33 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 30 pcs
- EAN code for a transport packaging
- 3838400104458
- Transport packaging weight
- 0.422 kg
- Transport Packaging Dimensions Height
- 150 mm
- Transport Packaging Dimensions Width
- 70 mm
- Transport Packaging Dimensions Depth
- 150 mm
- Transport packaging volume
- 1.575 dm³
- Pallet quantity
- 16,800 pcs
- Customs tariff
- 85369010
24 ETIM
- Explosion-tested version 'Ex e'
- Yes
- Width
- 8.2 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 41 A
- Mounting method
- DIN rail (top hat rail) 35 mm
- Number of levels
- 1
- Type of electrical connection 1
- Spring clamp connection
- Number of clamp positions per level
- 2
- Closing plate required
- Yes
- Type of electrical connection 2
- Spring clamp connection
- Rated voltage
- 1,000 V
- Colour
- Blue
- Height
- 46.7 mm
- Inflammability class of insulation material according to with UL94
- V0
- Connectable conductor cross section solid-core(Min)
- 0.2 mm²
- Connectable conductor cross section multi-wired(Min)
- 0.2 mm²
- Connectable conductor cross section fine-strand with cable end sleeve(Min)
- 6 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Min)
- 0.2 mm²
- Operating temperature(Min)
- -40 °C
- Connectable conductor cross section solid-core(Max)
- 10 mm²
- Connectable conductor cross section fine-strand without cable end sleeve(Max)
- 10 mm²
- Connectable conductor cross section multi-wired(Max)
- 10 mm²
- Operating temperature(Max)
- 130 °C
- Connectable conductor cross section fine-strand with cable end sleeve(Max)
- 10 mm²
ETIM Classification – Version 9.0
0 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
22 Tags
003903349Neutral terminalESH-EFC.6BETICONNECTPush-in spring clamp terminal blocksPush-in spring clamp terminal blocksPush-in spring clamp terminal blocksPush-in spring clamp terminal blocksFeed through terminal blocks, blue colorInternationalLine-up terminals for TH35 ETICONNECTPush-in spring clamp terminal blocksRated impulse withstand voltage Uimp: 8 kVCross connection: TrueColor: BlueType description: ESH Push-in Spring Clamp Terminal BlocksRated cross section: 6 mm²-6 mm²End section needed: TrueConnectable conductor cross section solid-core: 210 mm²-210 mm²Max current with rated cross-section: 41 mm²Level: SingleNeutral terminal Type description: ESH Push-in Spring Clamp Terminal Blocks Level: Single Color: Blue Rated cross section: 6 mm²-6 mm²
Similar Products 39 All Products
003903251

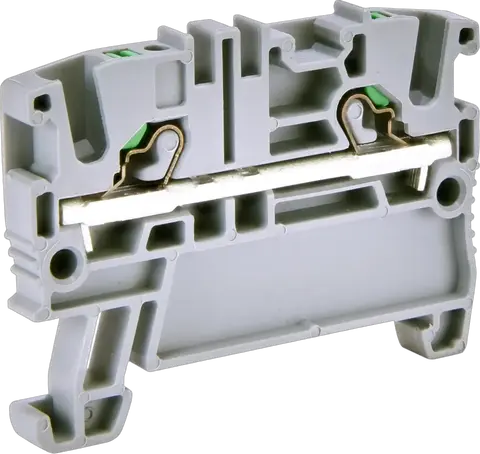

ESH-EFC.2
- Class name
- Line-up terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Single
- Color
- Grey
- Rated cross section
- 2.5 mm²
003903252
ESH-EFC.2B
- Class name
- Neutral terminal
- Type description
- ESH Push-in Spring Clamp Terminal Block
- Level
- Single
- Color
- Blue
- Rated cross section
- 2.5 mm²
003903253

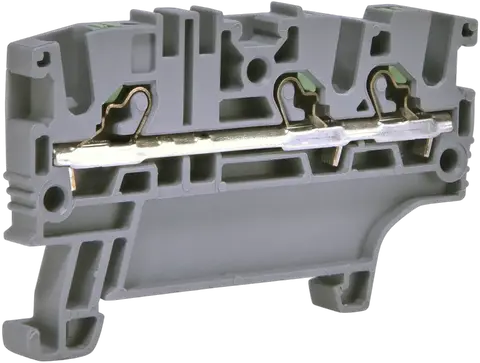

ESH-EFC.2/1+2
- Class name
- Line-up terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Single
- Color
- Grey
- Rated cross section
- 2.5 mm²
003903254
ESH-EFC.2/1+2B
- Class name
- Neutral terminal
- Type description
- ESH Push-in Spring Clamp Terminal Block
- Level
- Single
- Color
- Blue
- Rated cross section
- 2.5 mm²
003903255

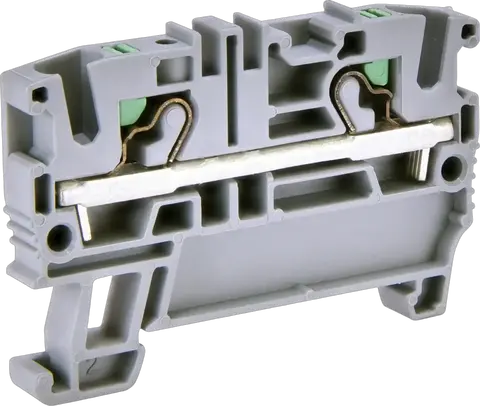

ESH-EFC.4
- Class name
- Line-up terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Single
- Color
- Grey
- Rated cross section
- 4 mm²
003903256

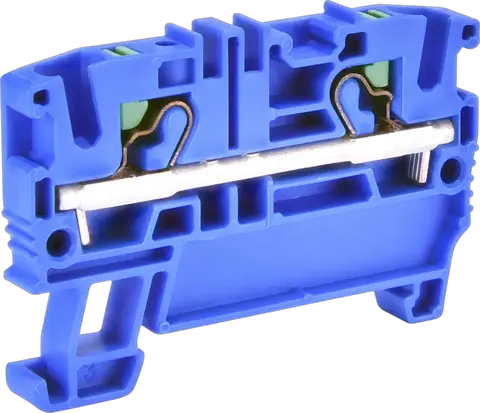

ESH-EFC.4B
- Class name
- Neutral terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Single
- Color
- Blue
- Rated cross section
- 4 mm²
003903257

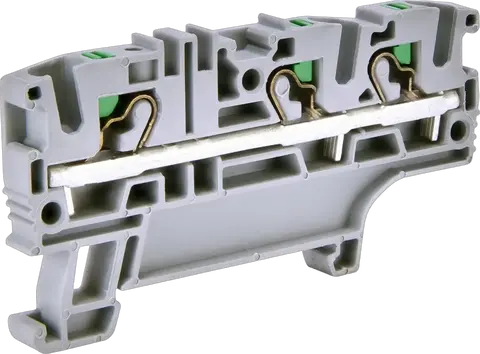

ESH-EFC.4/1+2
- Class name
- Line-up terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Single
- Color
- Grey
- Rated cross section
- 4 mm²
003903258

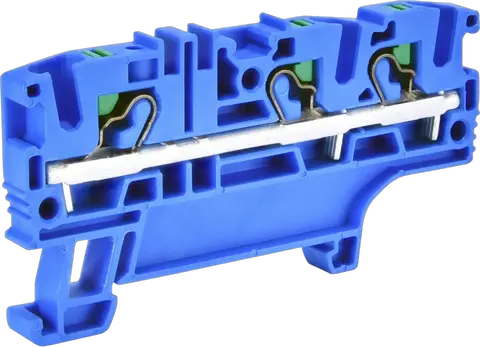

ESH-EFC.4/1+2B
- Class name
- Neutral terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Single
- Color
- Blue
- Rated cross section
- 4 mm²
003903267

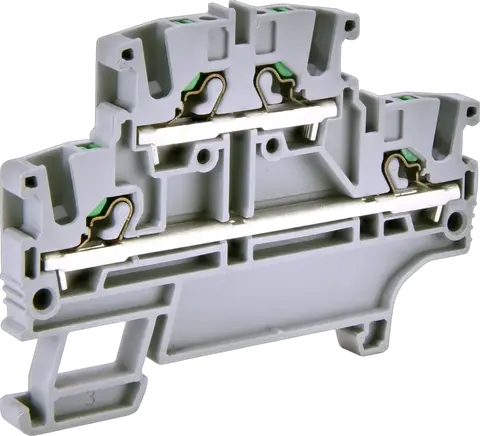

ESH-EFD.2
- Class name
- Line-up terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Double
- Color
- Grey
- Rated cross section
- 2 mm²
003903268

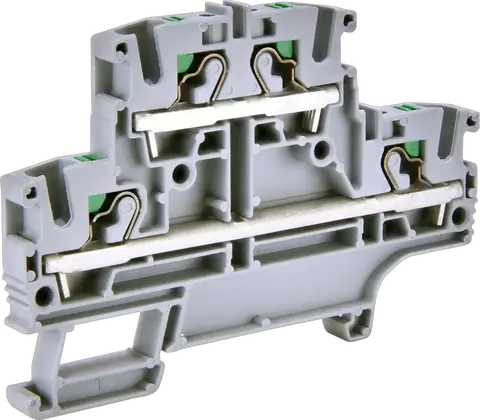

ESH-EFD.4
- Class name
- Line-up terminal
- Type description
- ESH Push-in Spring Clamp Terminal Blocks
- Level
- Double
- Color
- Grey
- Rated cross section
- 4 mm²
003903271

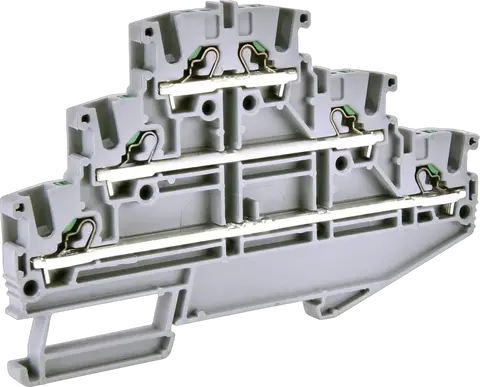

ESH-EFT.2
