004482051

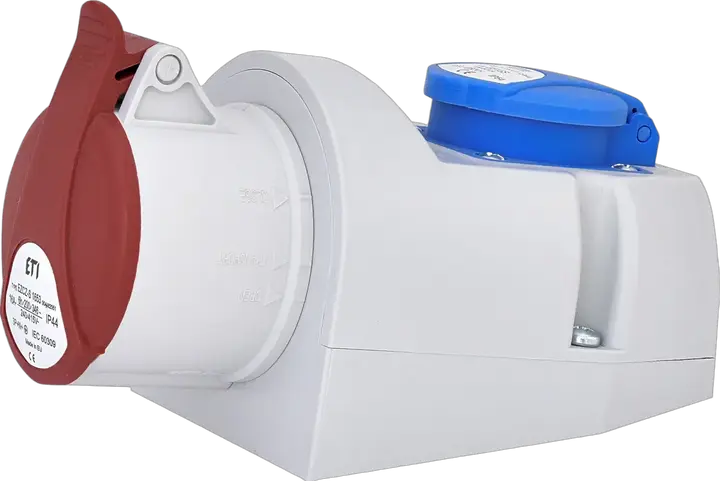

EZCZ -S 1653 CEE Socket
- ETI Code:
- 004482051
- Function:
- Combinated socket IP44
- Rated AC voltage:
- 400/230 V
- Height:
- 113 mm
- Width:
- 90 mm
- Color:
- Grey
- Catalogue Group:
- Sockets IP44
- Rated current:
- 16 A
- Type: socket/plug:
- Combinated sockets
- Number of poles:
- 3+N+E
- IP rating:
- IP44
4 Documents
12 Logistics
Product
- EAN code for a single product
- 3838895674153
- Net weight of the product
- 0.357 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 3838895674160
- Transport packaging weight
- 2.16 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 240 mm
- Transport Packaging Dimensions Depth
- 180 mm
- Transport packaging volume
- 9.504 dm³
- Pallet quantity
- 450 pcs
- Customs tariff
- 85366990
12 ETIM
- CEE socket outlet 16 A
- 3x16A xp xxxV
- Width
- 90 mm
- Degree of protection (IP)
- IP44
- Number of poles
- 5
- Housing material
- Plastic
- Depth
- 182 mm
- Clock hour position
- 6 h
- Number of socket outlets with protective contact CEE 7/3 (type F)
- 1
- Colour
- Grey
- Handling
- Wall mounting
- Height
- 113 mm
- Other fixtures and/or empty locations
- 1
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
17 Tags
004482051CEE SocketEZCZ -S 1653ETICEEIndustrial plug-in equipmentIP44 seriesIP44 seriesCombinated sockets IP44Combinated sockets IP44InternationalIndustrial plugs, sockets and industrial distribution boxes ETICEEIP44, IP54-seriesType: socket/plug: Combinated socketsNumber of poles: 3+N+EIP rating: IP44Rated current: 16 A/16 ACEE Socket Type: socket/plug: Combinated sockets Rated current: 16 A/16 A Type: socket/plug: Combinated sockets Number of poles: 3+N+E IP rating: IP44 IP rating: IP44
