004115409

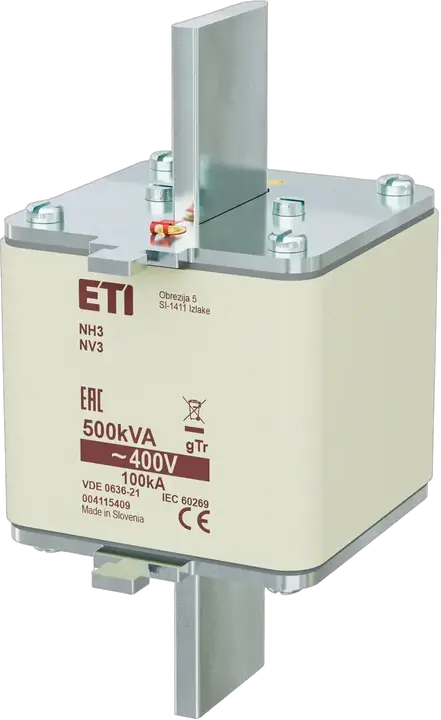

NH3 gTr 722A/400V/500kVA Fuse link
- ETI Code:
- 004115409
- Fuse type:
- NH
- Size:
- NH3
- Transformer:
- 500 kVA
- Time-Current Characteristic:
- gTr
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 400 V
- Breaking capacity AC:
- 100 kA
- Power dissipation:
- 49 W
- Prearcing joule integral (A2s):
- 1,645,000
- Operating joule integral (A2s):
- 3,472,000
- Standards:
- VDE 0636-21
- Application:
- Protection of transformers
22 Logistics
Product
- EAN code for a single product
- 3838400038326
- Net weight of the product
- 1,300 g
- Net width
- 74 mm
- Net height
- 151.7 mm
- Net depth
- 87.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895612650
- Basic packaging weight
- 4.05 kg
- Basic Packaging Dimensions Height
- 0.103 m
- Basic Packaging Dimensions Width
- 0.244 m
- Basic Packaging Dimensions Depth
- 0.164 m
- Basic packaging volume
- 0.004 m³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895476955
- Transport packaging weight
- 20.8 kg
- Transport Packaging Dimensions Height
- 0.23 m
- Transport Packaging Dimensions Width
- 0.38 m
- Transport Packaging Dimensions Depth
- 0.38 m
- Transport packaging volume
- 0.033 m³
- Pallet quantity
- 360 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 100 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH3
- Rated voltage AC
- 400
- Power loss at rated current
- 49 W
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 722 A
- Utilization category
- gTr (Transformer protection)
ETIM Classification – Version 9.0
