004122035

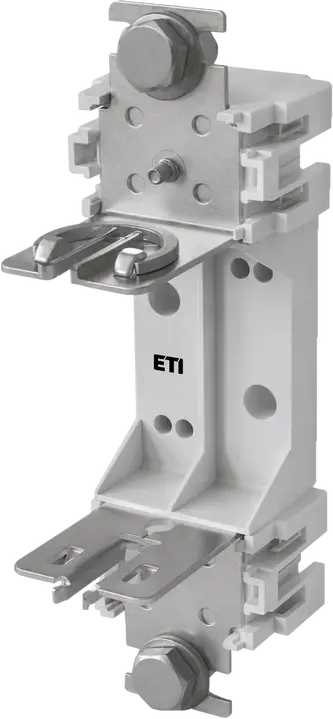

U1-1/GZ/PV Fuse - base
- ETI Code:
- 004122035
- Size:
- NH1
- Number of poles:
- 1
- Rated current:
- 160 A
- Rated DC voltage:
- 1000 V
- Type of Installation:
- Base plate mounting
- Max Permissable Power Dissipation per Fuse Link:
- 45 W
15 Logistics
Product
- EAN code for a single product
- 3838400168511
- Net weight of the product
- 0.38 kg
- Net width
- 59 mm
- Net height
- 200 mm
- Net depth
- 107 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 2 pcs
- EAN code for a transport packaging
- 3838400068910
- Transport packaging weight
- 0.768 kg
- Transport Packaging Dimensions Height
- 131 mm
- Transport Packaging Dimensions Width
- 253 mm
- Transport Packaging Dimensions Depth
- 108 mm
- Transport packaging volume
- 3.579 dm³
- Pallet quantity
- 486 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH1
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 160 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
19 Tags
004122035Fuse - baseU1-1/GZ/PVSpecial fusesFuse basesU1-1U1-11000V1000VInternationalFuse links NHFuse bases NH DCSize: NH1Max Permissable Power Dissipation per Fuse Link: 45 WNumber of poles: 1Type of Installation: Base plate mountingRated DC voltage: 1000 V/1000 VRated current: 160 A/160 AFuse - base
