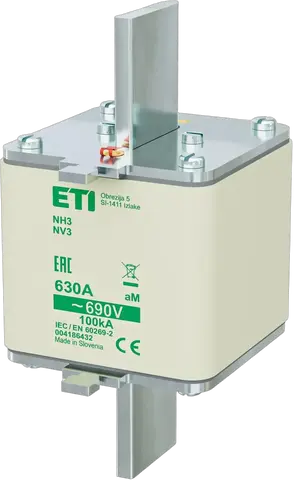

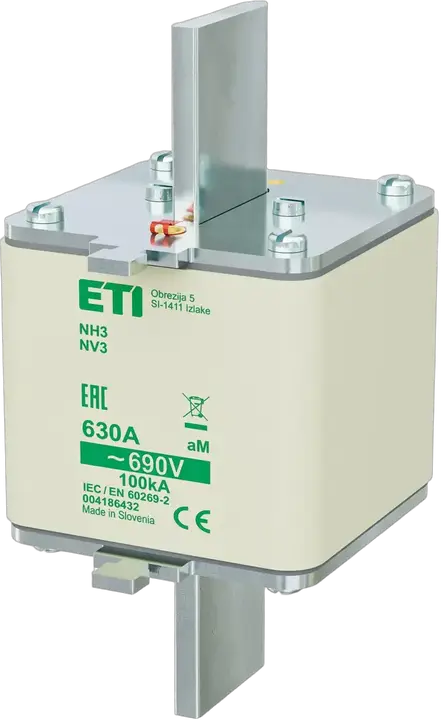

NH3 aM 630A/690V Fuse link

ETI Code:: 004186432
Fuse type:: NH
Size:: NH3
Rated current:: 630 A
Time-Current Characteristic:: aM
Indicator:: Top fuse status indicator
Rated AC voltage:: 690 V
Breaking capacity AC:: 100 kA
Power dissipation:: 50 W
Prearcing joule integral (A2s):: 1,150,000
Operating joule integral (A2s):: 5,050,000
Standards:: VDE 0636-2011
Application:: For relays, contactors and motors protection in case of short-circuit

Accessories

Product

EAN code for a single product: 3838400119803
Net weight of the product: 1,300 g
Net width: 74 mm
Net height: 151.7 mm
Net depth: 87.5 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895809609
Basic packaging weight: 4.05 kg
Basic Packaging Dimensions Height: 0.103 m
Basic Packaging Dimensions Width: 0.244 m
Basic Packaging Dimensions Depth: 0.164 m
Basic packaging volume: 0.004 m³

Transport Packaging

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895809616
Transport packaging weight: 20.8 kg
Transport Packaging Dimensions Height: 0.23 m
Transport Packaging Dimensions Width: 0.38 m
Transport Packaging Dimensions Depth: 0.38 m
Transport packaging volume: 0.033 m³
Pallet quantity: 360 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 690
Power loss at rated current: 50 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 630 A
Utilization category: aM (switchgear protection)
