006710124

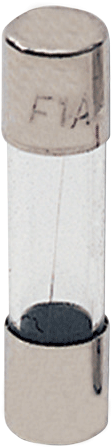

Mini fuse 5x20 FF 4A/250V Fuse link
- ETI Code:
- 006710124
- Product group:
- Mini fuse
- Catalogue Group:
- Mini fuse
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 5x20
- Time-Current Characteristic:
- FF
- Rated AC voltage:
- 250 V
- Rated DC voltage:
- 250 V
- Rated current:
- 4 A
- Standards:
- IEC 60127-1, IEC 60127-2
- Application:
- Electronic devices protection
- Power dissipation:
- 2 W
- Breaking capacity AC:
- 1.5 kA
- Operating joule integral (A2s):
- 3.2
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400170460
- Net weight of the product
- 5 g
- Net width
- 7.2 mm
- Net height
- 20 mm
- Net depth
- 7.19 mm
- Stock unit of measure
- pcs
Transport Packaging
- Intermediate packaging quantity
- 1,000 pcs
- EAN code for a intermediate packaging
- 3838400069597
- Intermediate packaging weight
- 5 kg
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 8024873023173
- Transport packaging weight
- 0.05 kg
- Transport packaging volume
- 0.005 dm³
- Pallet quantity
- 160,000 pcs
- Customs tariff
- 85361010
5 ETIM
- Model
- Ceramic fuse
- Release characteristic
- Super fast (FF)
- Size
- 5x20 mm
- Rated voltage
- 250 V
- Rated current
- 4 A
ETIM Classification – Version 9.0
