002570211

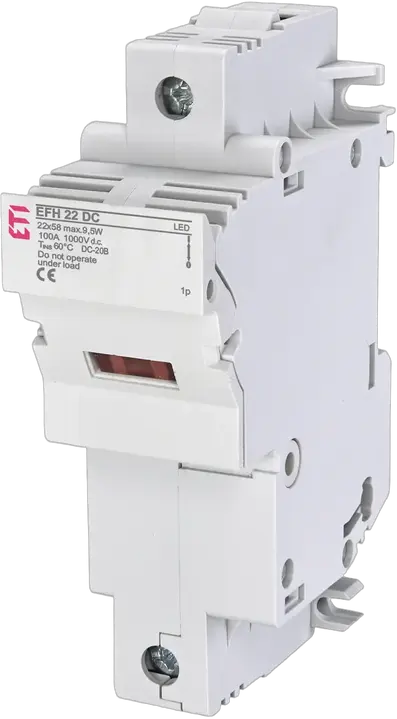

EFH 22 DC LED 1p Fuse - base
- ETI Code:
- 002570211
- To use with:
- CH gPV fuse-links
- Product group:
- LV-fuse disconnector
- Catalogue Group:
- LV-fuse disconnector
- IP rating:
- IP20
- Type description:
- EFH
- Size:
- 22x58
- Number of poles:
- 1
- Type of Installation:
- DIN rail
- Utilization category:
- DC-20B
- Rated current:
- 100 A
- Rated DC voltage:
- 1000 V
- Indicator:
- LED
- Standards:
- IEC60947-1, IEC60947-3
- Ambient temperature:
- -5/40 °C
- Application:
- Photovoltaic Installation
4 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895910664
- Net weight of the product
- 158 g
- Net width
- 35.6 mm
- Net height
- 120.4 mm
- Net depth
- 75.84 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895798064
- Basic packaging weight
- 0.509 kg
- Basic Packaging Dimensions Height
- 82 mm
- Basic Packaging Dimensions Width
- 330 mm
- Basic Packaging Dimensions Depth
- 98 mm
- Basic packaging volume
- 2.652 dm³
Transport Packaging
- Transport packaging quantity
- 105 pcs
- EAN code for a transport packaging
- 3838895798071
- Transport packaging weight
- 18.622 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 2,100 pcs
- Customs tariff
- 85389099
4 ETIM
- For fuse size
- Other
- Mounting method
- Other
- Nominal voltage
- 1,000 V
- Number of poles
- 1
ETIM Classification – Version 9.0
