002550201 Obsolete

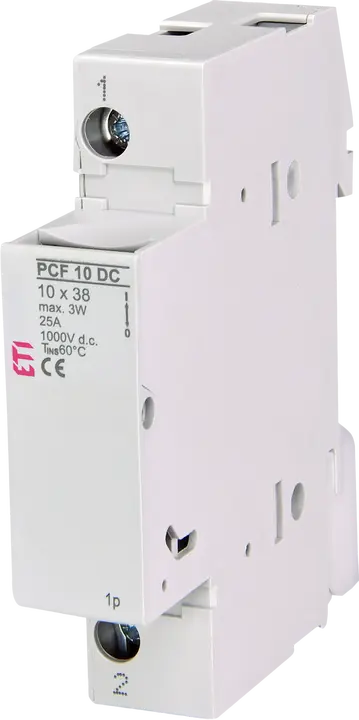

*PCF 10 DC 1p 1000V Fuse disconnector

ETI Code:: 002550201
Product group:: LV-fuse disconnector
Catalogue Group:: LV-fuse disconnector
Number of poles:: 1
Rated current:: 25 A
Rated DC voltage:: 1000 V

Accessories

Product

EAN code for a single product: 3838400057280
Net weight of the product: 0.063 kg
Net width: 17.8 mm
Net height: 85.3 mm
Net depth: 70.86 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895410157
Basic packaging weight: 0.812 kg
Basic Packaging Dimensions Height: 79 mm
Basic Packaging Dimensions Width: 220 mm
Basic Packaging Dimensions Depth: 91 mm
Basic packaging volume: 1.582 dm³

Transport Packaging

Transport packaging quantity: 108 pcs
EAN code for a transport packaging: 3838895618218
Transport packaging weight: 7.661 kg
Transport Packaging Dimensions Height: 0.25 m
Transport Packaging Dimensions Width: 0.235 m
Transport Packaging Dimensions Depth: 0.295 m
Transport packaging volume: 0.017 m³
Pallet quantity: 5,616 pcs
Customs tariff: 85389099

Rated permanent current Iu: 25 A
Suitable for fuses: Other
Type of control element: Cover grip
Type of electrical connection of main circuit: Frame clamp
Degree of protection (IP), front side: IP20
Number of poles: 1
Suitable for busbar mounting: Yes

ETIM Classification – Version 9.0
