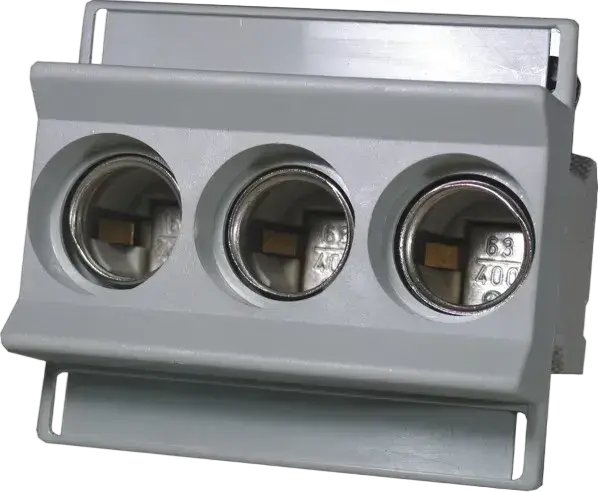

D02 E18 63A N-K 3p Fuse - base
- ETI Code:
- 002222021
- To use with:
- D0 fuse-links
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- D02 With protection cover
- Type of Installation:
- DIN rail
- Size:
- D02
- Product group:
- LV-fuse base
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Number of poles:
- 3
7 Documents
19 Logistics
Product
- EAN code for a single product
- 3838895989400
- Net weight of the product
- 294 g
- Net width
- 81.4 mm
- Net height
- 71.5 mm
- Net depth
- 62.45 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895007456
- Basic packaging weight
- 1.531 kg
- Basic Packaging Dimensions Height
- 0.086 m
- Basic Packaging Dimensions Width
- 0.308 m
- Basic Packaging Dimensions Depth
- 0.075 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 40 pcs
- EAN code for a transport packaging
- 3838895716884
- Transport packaging weight
- 12.246 kg
- Transport packaging volume
- 26.1 dm³
- Pallet quantity
- 1,200 pcs
- Customs tariff
- 85389099
6 ETIM
- Construction size
- D02
- Version with cover
- Yes
- Number of poles
- 3
- Rated voltage
- 400 V
- Rated current
- 63 A
- Material
- Porcelain
