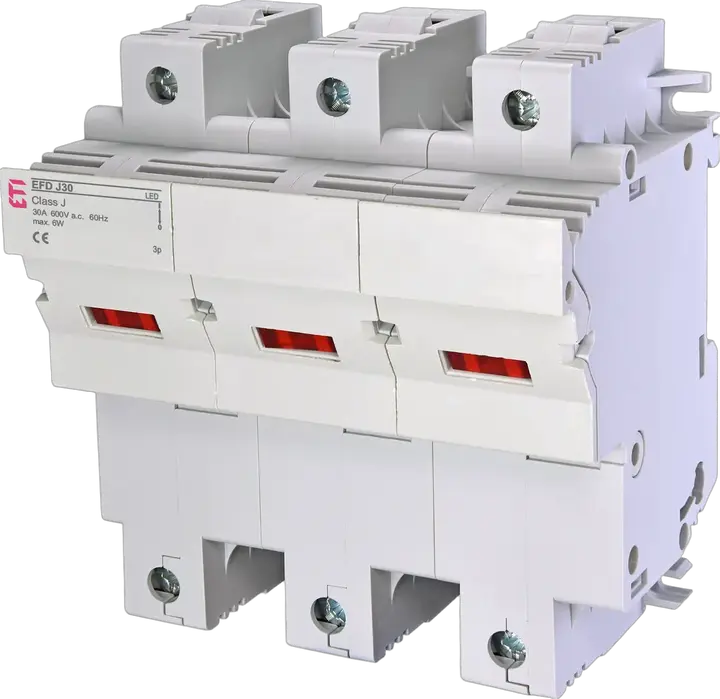

EFD J30 3p LED Fuse - base
- ETI Code:
- 002570114
- To use with:
- CH fuse-links
- Product group:
- LV-fuse-switch disconnector
- Catalogue Group:
- LV-fuse-switch disconnector
- Overvoltage Category:
- III
- Type description:
- EFD
- Size:
- J30
- Type of Installation:
- DIN rail
- Number of poles:
- 3
- Rated AC voltage:
- 600 V
- Rated current:
- 30 A
- Indicator:
- LED
- Ambient temperature:
- -5/40 °C
- Max Permissable Power Dissipation per Fuse Link:
- 6 W
- Standards:
- IEC60947-1, IEC60947-3
- Application:
- Residential and industrial installation
- IP rating:
- IP20
5 Documents
21 Logistics
Product
- Net weight of the product
- 485 g
- Net width
- 106.8 mm
- Net height
- 120.4 mm
- Net depth
- 75.84 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895711803
- Basic packaging weight
- 0.519 kg
- Basic Packaging Dimensions Height
- 82 mm
- Basic Packaging Dimensions Width
- 112 mm
- Basic Packaging Dimensions Depth
- 126 mm
- Basic packaging volume
- 1.157 dm³
Transport Packaging
- Transport packaging quantity
- 35 pcs
- EAN code for a transport packaging
- 3838895711810
- Transport packaging weight
- 18.972 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 560 pcs
- Customs tariff
- 85389099
