002213002

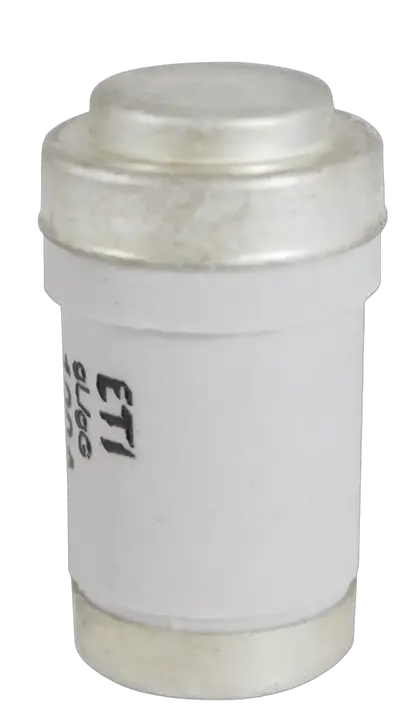

D03 gG 100A/400V Fuse link

ETI Code:: 002213002
Product group:: D0 low voltage Fuses
Catalogue Group:: D0 low voltage Fuses
Type description:: D0
Fuse type:: D0
Size:: D03
Time-Current Characteristic:: gG
Rated AC voltage:: 400 V
Rated DC voltage:: 250 V
Rated current:: 100 A
Power dissipation:: 6.4 W
Breaking capacity AC:: 50 kA
Breaking capacity DC:: 8 kA
Prearcing joule integral (A2s):: 22,100
Operating joule integral (A2s):: 60,260
Indicator:: Top fuse status indicator
Standards:: DIN EN 60269-1, DIN EN 60269-3
Application:: For cable protection

Product

EAN code for a single product: 5904722906143
Net weight of the product: 40 g
Net width: 30.9 mm
Net height: 42.2 mm
Net depth: 30.87 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838895137368
Basic packaging weight: 0.43 kg
Basic Packaging Dimensions Height: 0.045 m
Basic Packaging Dimensions Width: 0.057 m
Basic Packaging Dimensions Depth: 0.132 m
Basic packaging volume: 0 m³

Transport Packaging

Transport packaging quantity: 400 pcs
EAN code for a transport packaging: 3838895163565
Transport packaging weight: 17.55 kg
Transport Packaging Dimensions Height: 0.25 m
Transport Packaging Dimensions Width: 0.235 m
Transport Packaging Dimensions Depth: 0.295 m
Transport packaging volume: 0.017 m³
Pallet quantity: 20,800 pcs
Customs tariff: 85361090

Colour code: Red
Construction size: D03
Rated voltage: 400 V
Rated current: 100 A

ETIM Classification – Version 9.0
