002313624

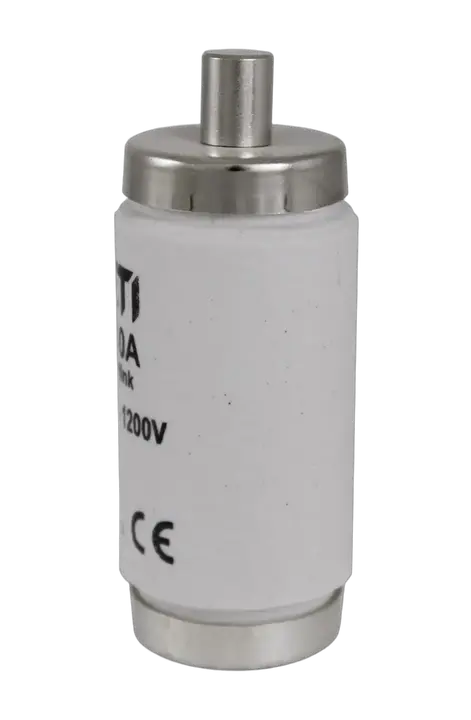

DIII gF 16A/1200V Fuse link
- ETI Code:
- 002313624
- Product group:
- D Low voltage Fuses
- Catalogue Group:
- D Low voltage Fuses
- Application:
- For cable protection
- Type description:
- D
- Size:
- DIII
- Time-Current Characteristic:
- gF
- Rated AC voltage:
- 1200 V
- Rated DC voltage:
- 1200 V
- Rated current:
- 16 A
- Breaking capacity AC:
- 10 kA
- Fuse type:
- D
- Indicator:
- Top fuse status indicator
- Standards:
- DIN EN 60269-1, DIN EN 60269-3
22 Logistics
Product
- EAN code for a single product
- 5904722998148
- Net weight of the product
- 0.086 kg
- Net width
- 27 mm
- Net height
- 27 mm
- Net depth
- 70 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895422280
- Basic packaging weight
- 0.43 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.14 m
- Basic Packaging Dimensions Depth
- 0.03 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 200 pcs
- EAN code for a transport packaging
- 3838895422297
- Transport packaging weight
- 17.55 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 10,400 pcs
- Customs tariff
- 85351000
6 ETIM
- Colour code
- Grey
- Release characteristic
- Fast (F)
- Construction size
- DIII
- Rated voltage
- 1,200 V
- Rated current
- 16 A
- Utilization category
- Other
ETIM Classification – Version 9.0
