004750004
Obsolete

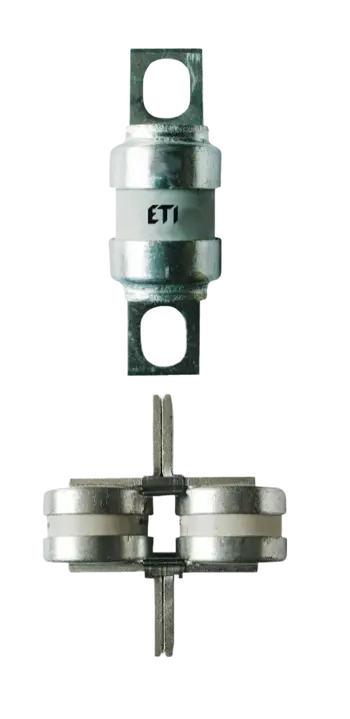

*BS8UQ/38/16A/240V Fuse link
- ETI Code:
- 004750004
- Product group:
- Semiconductor Protection
- Catalogue Group:
- Semiconductor Protection
- Type description:
- BS
- Rated current:
- 16 A
- Rated AC voltage:
- 240 V
- Rated DC voltage:
- 120 V
- Time-Current Characteristic:
- aR
- Breaking capacity AC:
- 100 kA
- Breaking capacity DC:
- 100 kA
- Application:
- For protection of semiconductor devices
- Power dissipation:
- 2.5 W
- Operating joule integral (A2s):
- 100
- Standards:
- IEC 60269-4, BS88 Part 4
3 Documents
11 Logistics
Product
- Net weight of the product
- 0.022 kg
- Net width
- 8 mm
- Net height
- 47 mm
- Net depth
- 8.7 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838895577195
- Transport packaging weight
- 0.43 kg
- Transport packaging volume
- 0.11 dm³
- Pallet quantity
- 37,200 pcs
- Customs tariff
- 85361050
4 ETIM
- Size
- Other
- Breaking capacity
- 100 kA
- Rated current
- 16 A
- Utilization category
- Other
ETIM Classification – Version 9.0
