002921278

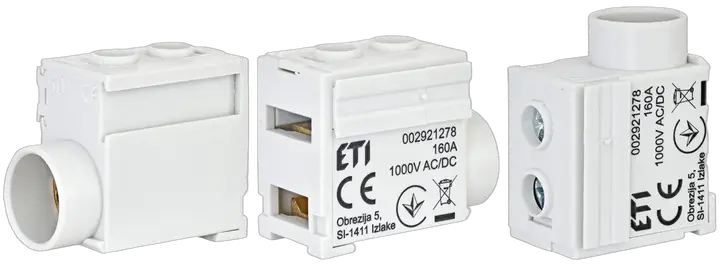

EFB-50 Panel Busbar connector
- ETI Code:
- 002921278
- To use with:
- Fork or Pin type section rails
- Catalogue Group:
- IZ Section rails
- Type description:
- Pin Side
- Number of poles:
- 1
- Function:
- Feeder
- Busbar type:
- PIN
- Rated current:
- 160 A
- Rated cross section:
- 50 mm²
- Lenght in modules:
- 1
- No. Of Phases:
- 1
- Voltage type:
- AC/DC
- Rated AC voltage:
- 1000 V
- Rated DC voltage:
- 1000 V
- Type accessories:
- Feed in terminal
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400077578
- Net weight of the product
- 0.029 kg
- Net width
- 35.3 mm
- Net height
- 29.8 mm
- Net depth
- 19.15 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895841609
- Transport packaging weight
- 0.34 kg
- Transport Packaging Dimensions Height
- 100 mm
- Transport Packaging Dimensions Width
- 84 mm
- Transport Packaging Dimensions Depth
- 50 mm
- Transport packaging volume
- 0.42 dm³
- Pallet quantity
- 23,800 pcs
- Customs tariff
- 85369010
