Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921216

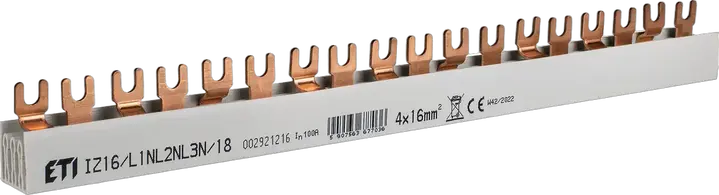

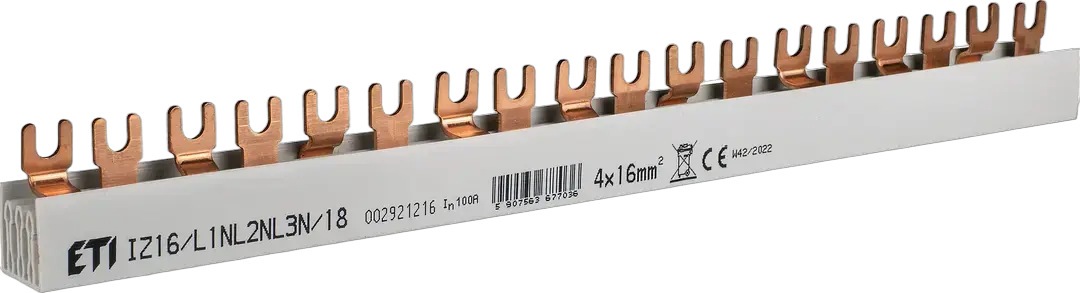

Image of IZ16/L1NL2NL3N/18

IZ16/L1NL2NL3N/18 Insulated busbar

ETI Code:: 002921216
To use with:: ETIMAT 6, SV, ETIMAT 10
Type description:: Fork Type
Number of poles:: 3+N
Function:: Section rails
Busbar type:: FORK
Rated current:: 100 A
Rated cross section:: 16 mm²
Lenght in modules:: 1x18
No. Of Phases:: 4
Rated AC voltage:: 500 V
Rated DC voltage:: 500 V
Type accessories:: Section rails

Product

Net weight of the product: 0.293 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907563676077
Basic packaging weight: 0.292 kg
Basic packaging volume: 0.254 dm³

Transport Packaging

Intermediate packaging quantity: 10 pcs
EAN code for a intermediate packaging: 5907563677036
Intermediate packaging weight: 2.92 kg
Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 5907563670075
Transport packaging weight: 35.04 kg
Transport packaging volume: 30.48 dm³
Pallet quantity: 6,000 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 4
Rated permanent current Iu: 100 A
Module width: 17.8 mm
Max. rated operation voltage Ue: 500 V
Insulated: Yes
Type of electric connection: Fork

ETIM Classification – Version 9.0
