002921156

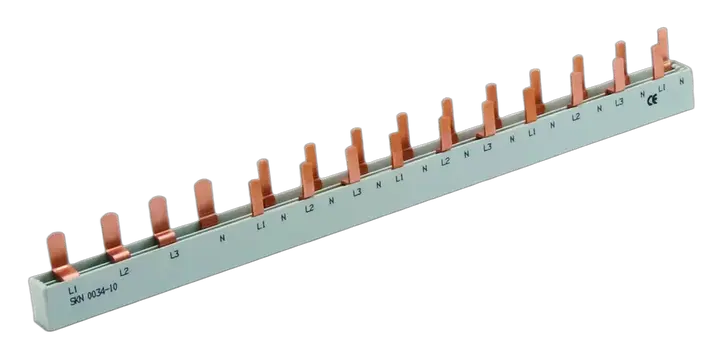

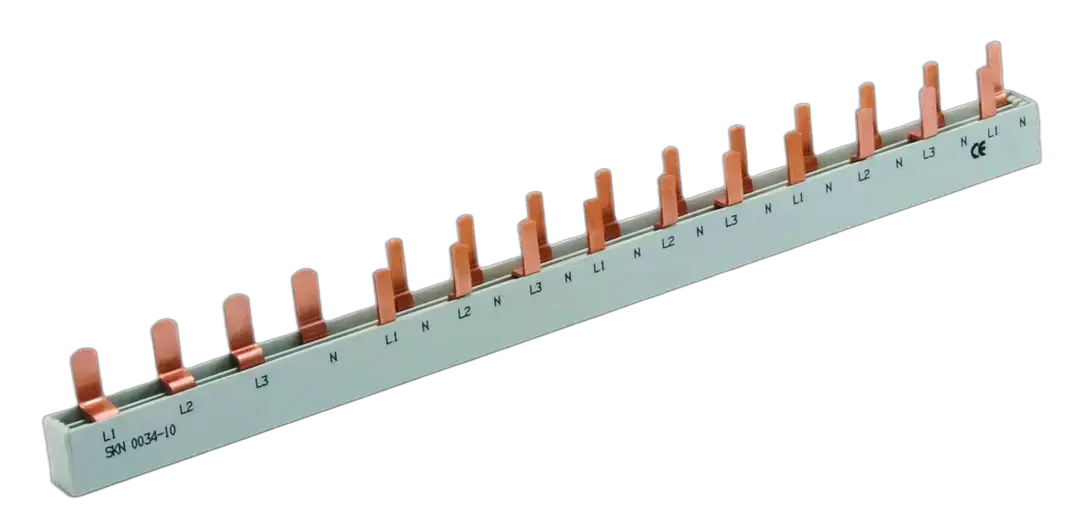

SKN0034/10 3P Insulated busbar
- ETI Code:
- 002921156
- To use with:
- EFI2+10xETIMAT 1N
- Catalogue Group:
- IZ Section rails
- Type description:
- SKN type
- Number of poles:
- 3+N
- Function:
- Section rails
- Busbar type:
- SKN
- Rated current:
- 63 A
- Rated cross section:
- 10 mm²
- Lenght in modules:
- 1x14
- No. Of Phases:
- 3
- Voltage type:
- AC
- Rated AC voltage:
- 400 V
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838400077189
- Net weight of the product
- 0.38 kg
- Net width
- 252.3 mm
- Net height
- 27.5 mm
- Net depth
- 10.9 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895642282
- Transport packaging weight
- 3.83 kg
- Transport Packaging Dimensions Height
- 264 mm
- Transport Packaging Dimensions Width
- 80 mm
- Transport Packaging Dimensions Depth
- 46 mm
- Transport packaging volume
- 0.972 dm³
- Pallet quantity
- 18,370 pcs
- Customs tariff
- 85369040
4 ETIM
- Cross section
- 10 mm²
- Rated permanent current Iu
- 63 A
- Insulated
- Yes
- Type of electric connection
- Pin
ETIM Classification – Version 9.0
