002921068

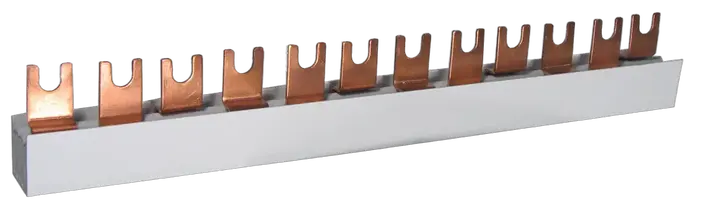

IZ16/4F/12 Insulated busbar
- ETI Code:
- 002921068
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 4
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x12
- No. Of Phases:
- 4
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
16 Logistics
Product
- EAN code for a single product
- 3838400042774
- Net weight of the product
- 0.27 kg
- Net width
- 219.4 mm
- Net height
- 31 mm
- Net depth
- 22 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 5907563671263
- Basic packaging weight
- 2.416 kg
- Basic packaging volume
- 0.25 dm³
Transport Packaging
- Transport packaging quantity
- 80 pcs
- EAN code for a transport packaging
- 5907563671270
- Transport packaging weight
- 19.521 kg
- Transport packaging volume
- 20 dm³
- Pallet quantity
- 3,200 pcs
- Customs tariff
- 85389099
14 ETIM
- Can be cut to size
- Yes
- Cross section
- 16 mm²
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 3
- Rated permanent current Iu
- 100 A
- Suitable for number of devices
- 12
- Module width
- 17.8 mm
- Number of poles
- 4
- Length
- 210 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Colour
- Grey
- Type of electric connection
- Fork
- Width in number of modular spacings
- 12
ETIM Classification – Version 9.0
