Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

002921065 Obsolete

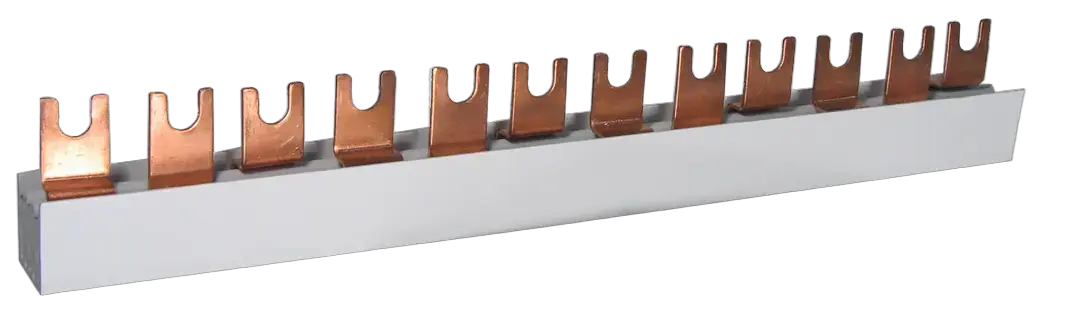

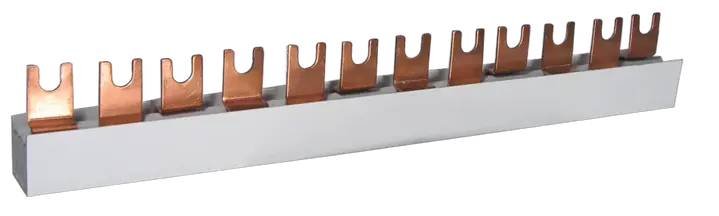

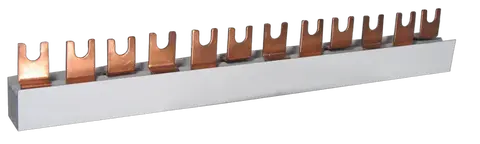

Image of * IZ16/3F/54/D

* IZ16/3F/54/D Insulated busbar

ETI Code:: 002921065
To use with:: ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Catalogue Group:: IZ Section rails
Type description:: Fork Type
Number of poles:: 3
Function:: Section rails
Busbar type:: FORK
Rated current:: 100 A
Rated cross section:: 16 mm²
Lenght in modules:: 1x54
No. Of Phases:: 3
Rated AC voltage:: 500 V
Rated DC voltage:: 500 V
Type accessories:: Section rails

Technical data catalog

Product

Net weight of the product: 0.27 kg
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 5907625307406
Transport packaging weight: 14.4 kg
Transport packaging volume: 12.2 dm³
Pallet quantity: 1,120 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 3
Rated permanent current Iu: 100 A
Module width: 17.8 mm
Length: 1,000 mm
Max. rated operation voltage Ue: 500 V
Insulated: Yes
Type of electric connection: Fork
