001344033

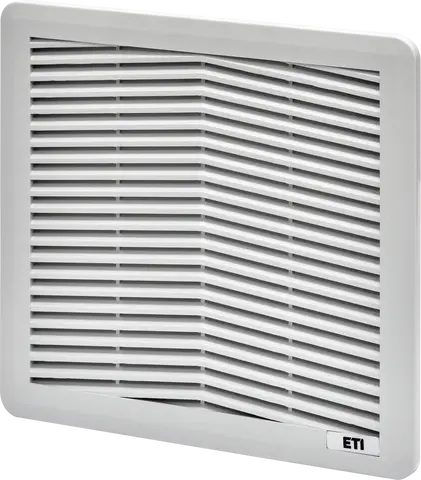

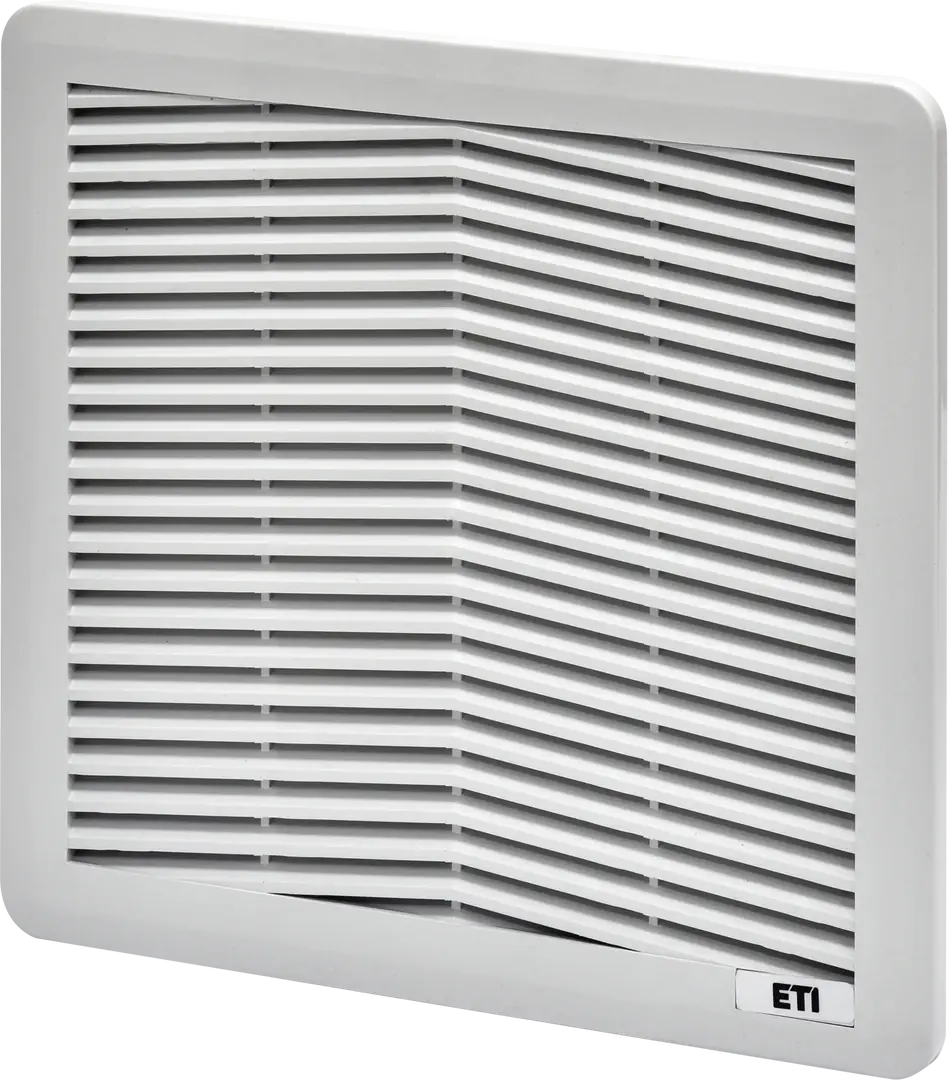

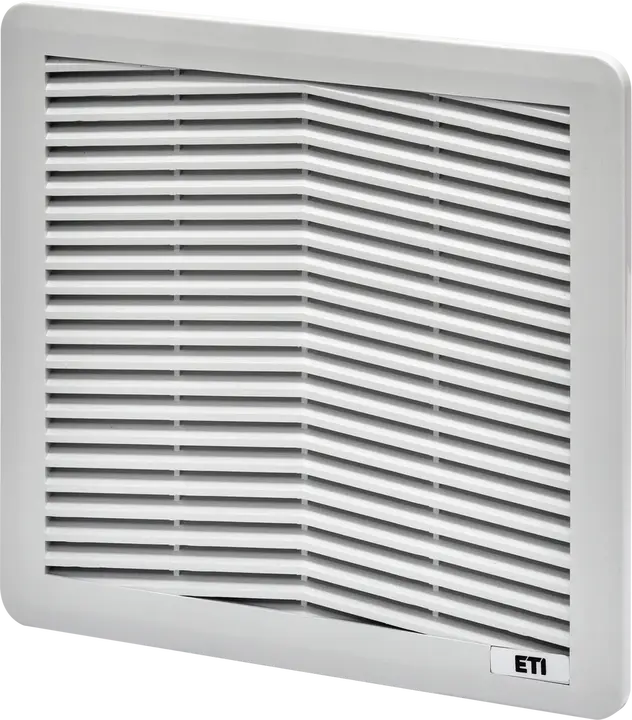

EF-250E Exhaust filter
- ETI Code:
- 001344033
- Working Temperature:
- -30-60 °C
- Approvals:
- CE
- Mounting wall thickness:
- 1.3-3.7 mm
- Color:
- RAL 7035
- Filter Class:
- G3
- Width:
- 250 mm
- Storage Temperature:
- -40-70 °C
- IP rating:
- IP54
- Height:
- 250 mm
- Depth:
- 34 mm
- Mounting cut-out:
- 223 mm
- Body material:
- PC/ABS UL94 V-0
21 Logistics
Product
- Net weight of the product
- 0.6 kg
- Net width
- 250.1 mm
- Net height
- 250.2 mm
- Net depth
- 37.67 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103857
- Basic packaging weight
- 0.6 kg
- Basic Packaging Dimensions Height
- 264 mm
- Basic Packaging Dimensions Width
- 265 mm
- Basic Packaging Dimensions Depth
- 40 mm
- Basic packaging volume
- 2.798 dm³
Transport Packaging
- Transport packaging quantity
- 18 pcs
- EAN code for a transport packaging
- 3838400103864
- Transport packaging weight
- 11.35 kg
- Transport Packaging Dimensions Height
- 360 mm
- Transport Packaging Dimensions Width
- 290 mm
- Transport Packaging Dimensions Depth
- 545 mm
- Transport packaging volume
- 56.898 dm³
- Pallet quantity
- 522 pcs
- Customs tariff
- 84219990
