001344011

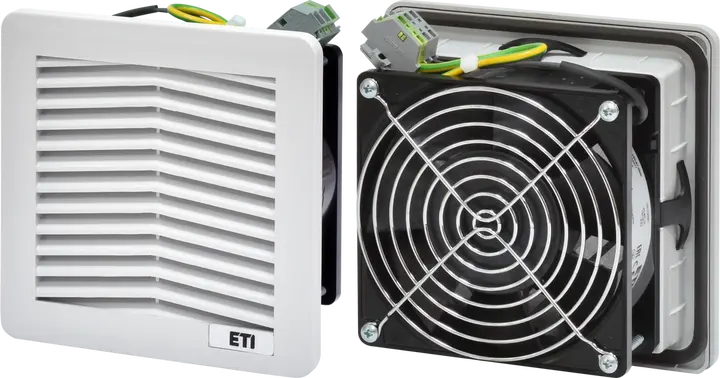

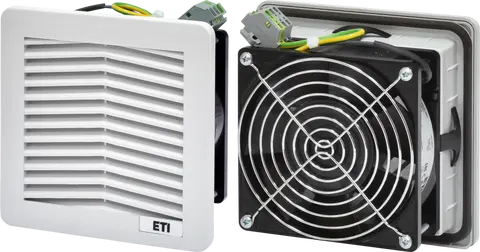

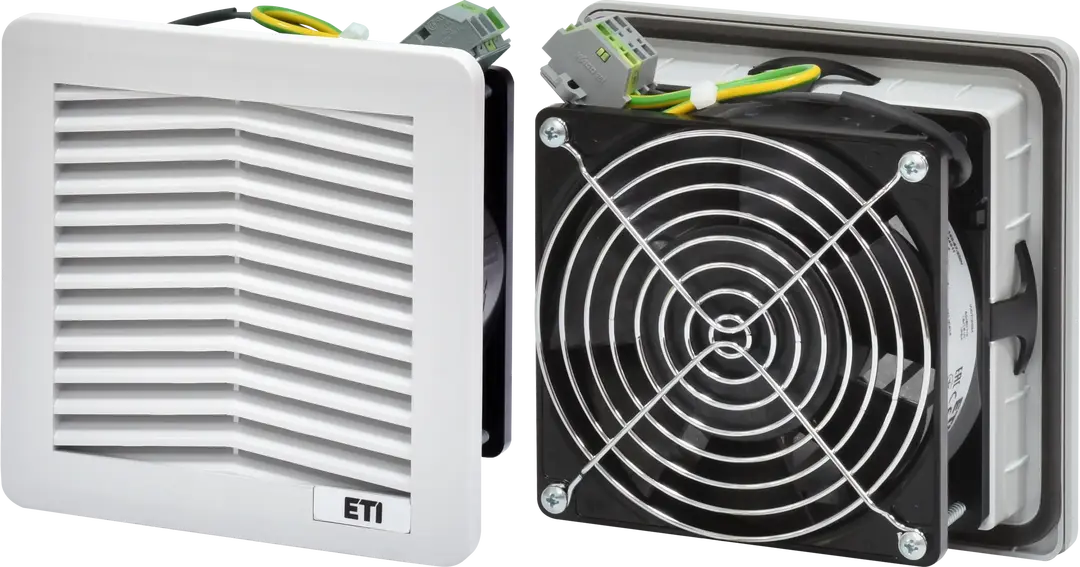

EF-150-67-230V Filterfan
- ETI Code:
- 001344011
- Working Temperature:
- -10-55 °C
- Approvals:
- CE
- Mounting wall thickness:
- 1.3-3.2 mm
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Rated current:
- 0.13 A
- Color:
- RAL 7035
- Rated power:
- 0.018 kW
- Airflow with exhaust filter:
- 43 m³/h
- Max static pressure:
- 69 Pa
- Filter Class:
- G3
- Width:
- 150 mm
- Storage Temperature:
- -40-70 °C
- IP rating:
- IP54
- Max Airflow:
- 67 m³/h
- Fan noise:
- 40 dB
- Height:
- 150 mm
- Connection type:
- Terminal block
- Depth:
- 74 mm
- Mounting cut-out:
- 124 mm
22 Logistics
Product
- EAN code for a single product
- 3838400166432
- Net weight of the product
- 0.9 kg
- Net width
- 150 mm
- Net height
- 153.4 mm
- Net depth
- 73.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103604
- Basic packaging weight
- 0.9 kg
- Basic Packaging Dimensions Height
- 160 mm
- Basic Packaging Dimensions Width
- 160 mm
- Basic Packaging Dimensions Depth
- 80 mm
- Basic packaging volume
- 2.048 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838400103611
- Transport packaging weight
- 18.9 kg
- Transport Packaging Dimensions Height
- 100 mm
- Transport Packaging Dimensions Width
- 100 mm
- Transport Packaging Dimensions Depth
- 1,200 mm
- Transport packaging volume
- 12 dm³
- Pallet quantity
- 360 pcs
- Customs tariff
- 84213925
