DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102313

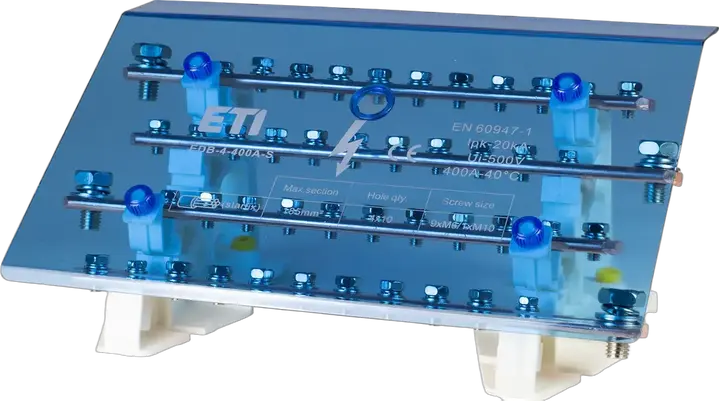

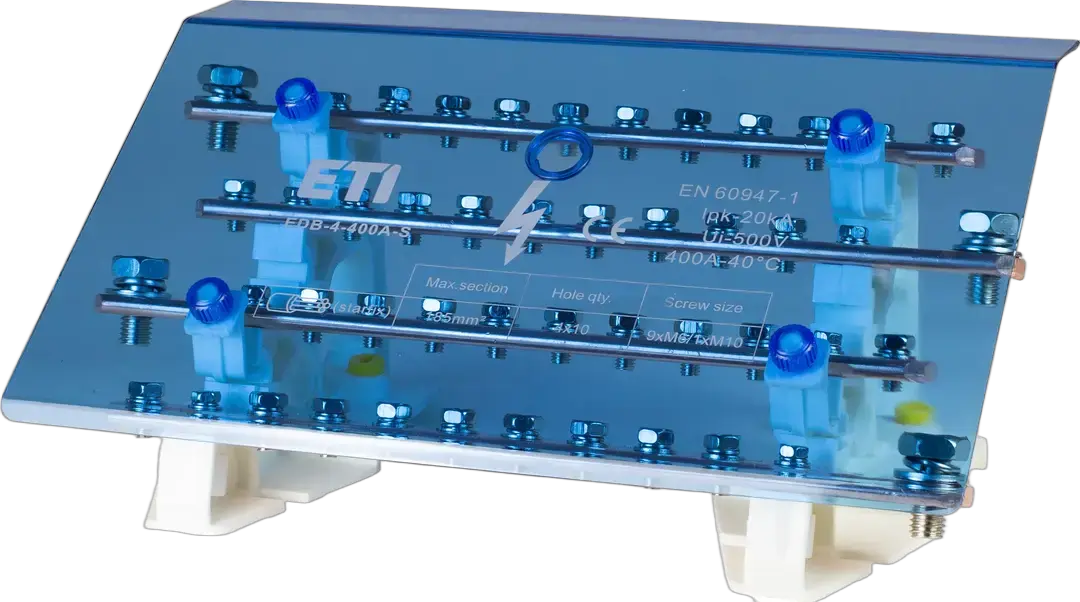

Image of EDB-4-400A-S

EDB-4-400A-S Distribution block

ETI Code:: 001102313
Type of Installation:: TH 35
Rated current:: 400 A
Rated AC voltage:: 400 V
Rated DC voltage:: 400 V
Rated Insulation Voltage:: 500 V
Short circuit capacity:: 20 kA
No. Of terminals:: 4x10
Height:: 122 mm
Width:: 273 mm
Depth:: 170 mm
Body material:: PA
Working Temperature:: -30-110 °C

Product

Net weight of the product: 1.7 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400000385
Basic packaging weight: 2 kg
Basic packaging volume: 2.63 dm³

Transport Packaging

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838400000392
Transport packaging weight: 20 kg
Transport packaging volume: 65.45 dm³
Pallet quantity: 200 pcs
Customs tariff: 85369010

Width: 170 mm
Transparent: Yes
Material insulation body: Thermoplastic
Rated current In: 400 A
Mounting method: Other
Type of electrical connection 1: Screw connection
Number of poles: 4
Number of clamp positions per pole: 10
Depth: 170 mm
Rated voltage: 400 V
Colour: Other
Height: 122 mm
Connectable conductor cross section multi-wired(Max): 185 mm²

ETIM Classification – Version 9.0
