Motor contactor

Introduction

Motor contactors are essential components in electrical systems, especially those involving motors. Motor contactors are electrically controlled switches used to switch a power circuit on and off. They are particularly well-suited for managing high-current loads, making them a mainstay in industrial settings for controlling and safeguarding electric motors.

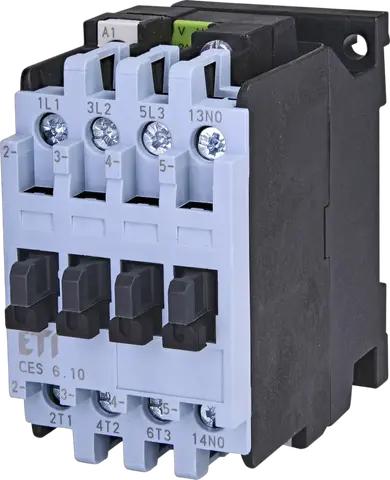

CES 6.10-24V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 24 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 6.10-230V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 230 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 6.10-400V-50Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 400 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

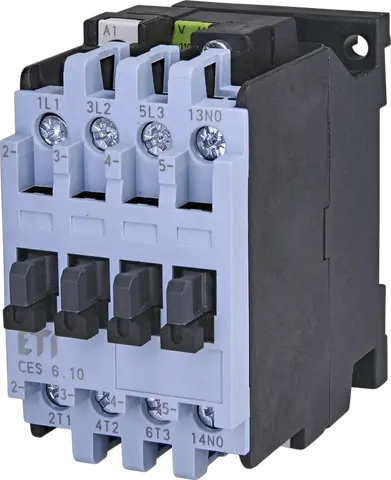

CES 6.10-110V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 110 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

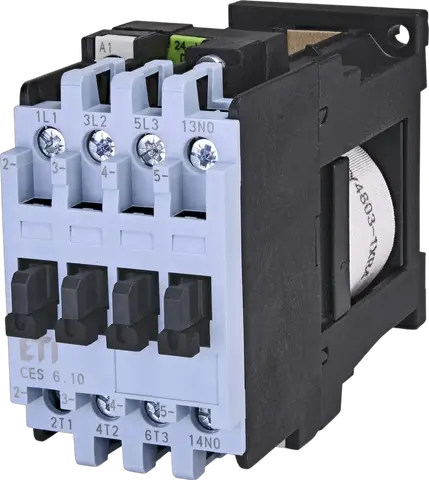

CES 6.10-24V DC

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 24
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 6.01-24V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 24 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

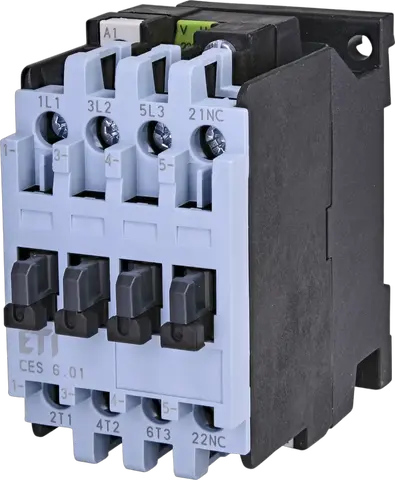

CES 6.01-230V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 230 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

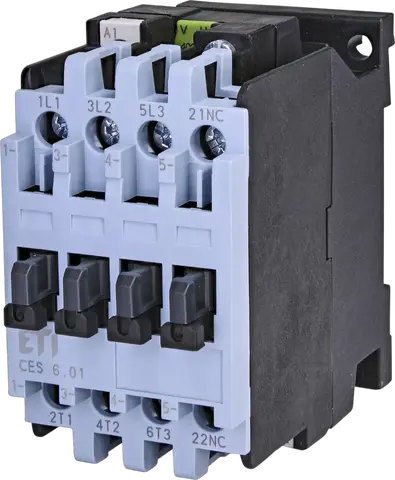

CES 6.01-400V-50Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 400 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

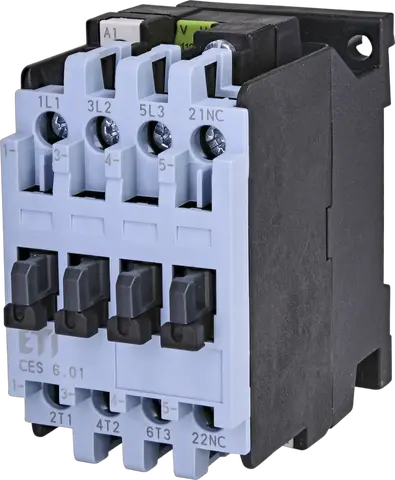

CES 6.01-110V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 110 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

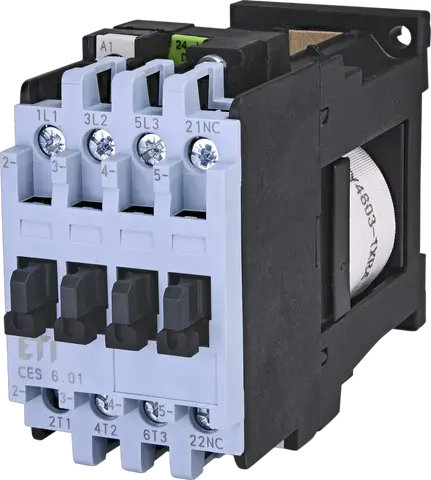

CES 6.01-24V DC

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 6 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 24
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

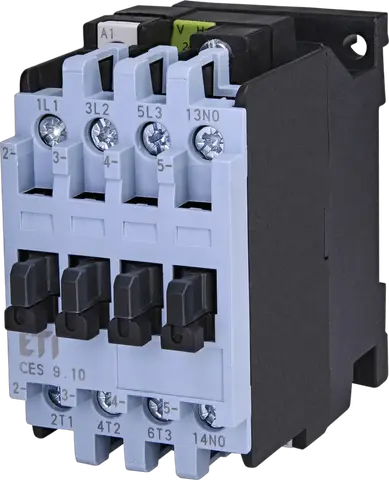

CES 9.10-24V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 24 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

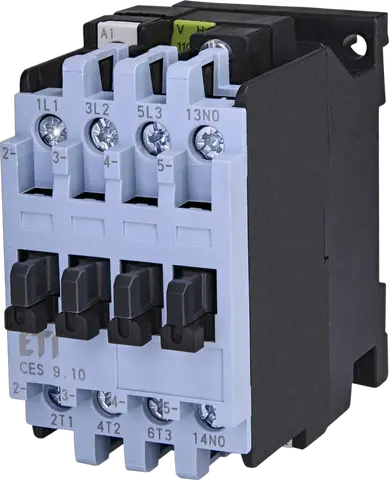

CES 9.10-110V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 110 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

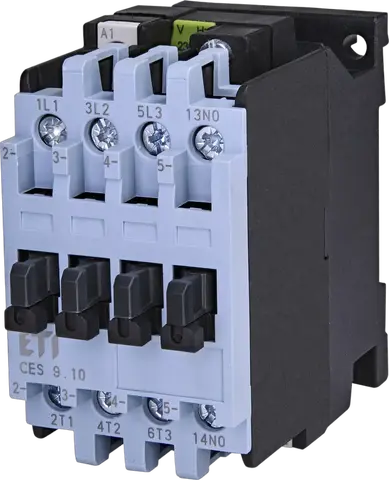

CES 9.10-230V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 230 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 9.10-400V-50Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 400 V
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 9.10-24V DC

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 24
Number of poles: 3
No. of aux NO contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 9.01-24V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 24 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

CES 9.01-110V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 110 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

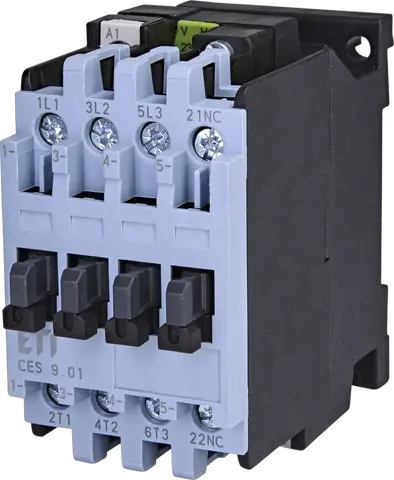

CES 9.01-230V-50/60Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 230 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

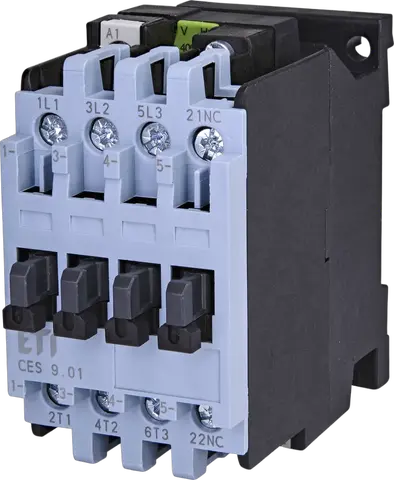

CES 9.01-400V-50Hz

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (AC): 400 V
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor

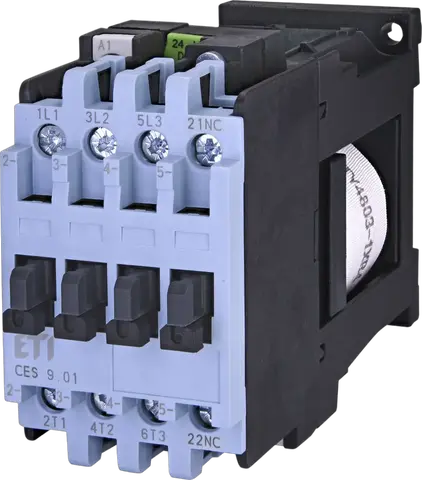

CES 9.01-24V DC

Class name: Motor contactor
Rated operation current Ie at AC1: 25 A
Rated operation current Ie at AC3, 400V: 9 A
Rated operational voltage (AC): 690 V
Rated control circuit voltage Uc (DC): 24
Number of poles: 3
No. of aux NC contacts: 1
Function: Motor contactor
Catalogue Group: CES Motor contactor
