002472053

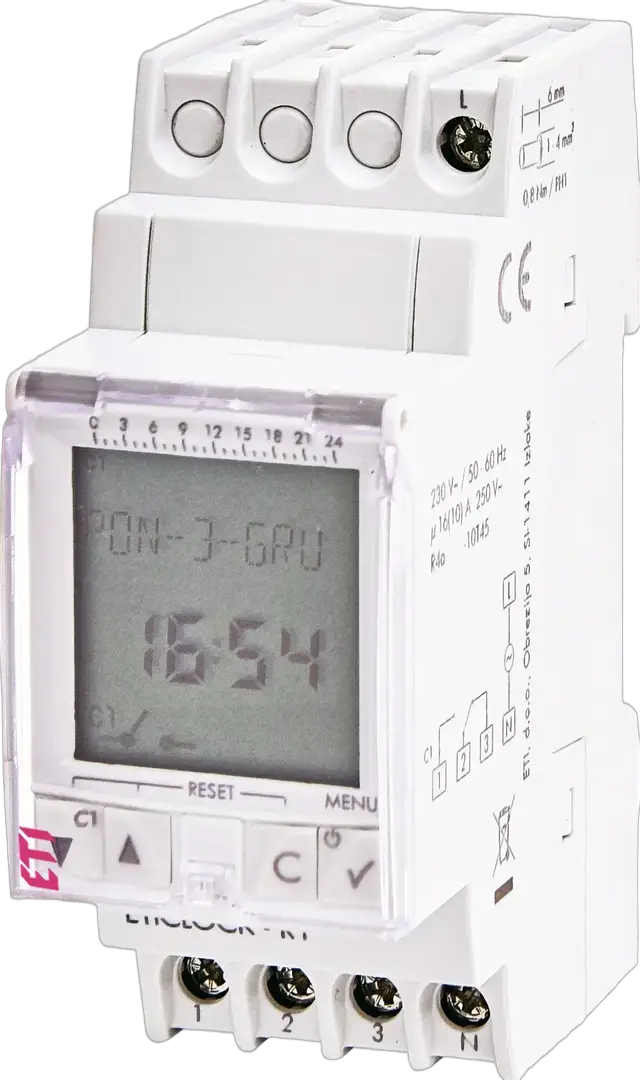

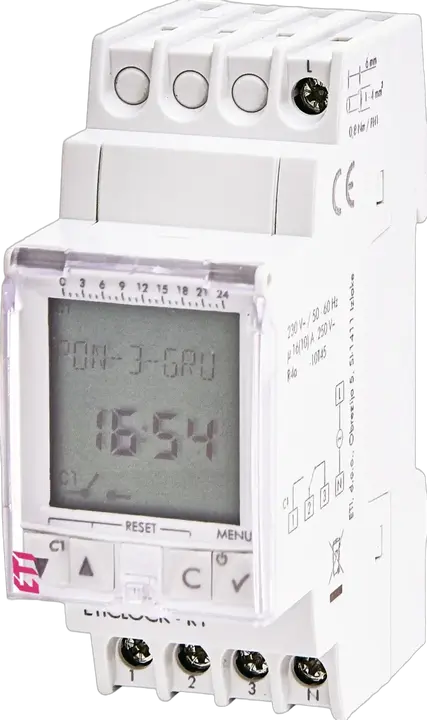

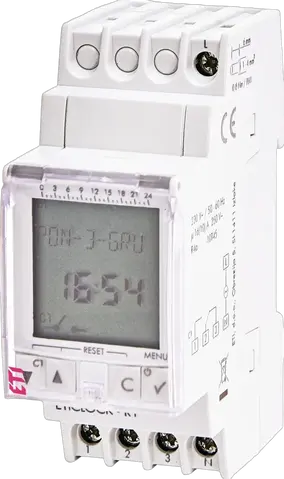

ETICLOCK-R1 Time relay - digital
- ETI Code:
- 002472053
- Category:
- Digital time switch ETICLOCK- R1
- Catalogue Group:
- Time relay (Digital)
- Catalogue Subgroup:
- Digital time switch
- Time range:
- daily, weekly
- Type description:
- Digital time switch ETICLOCK- R1
- Voltage type:
- AC
- Number of contacts:
- 1
- No. of CO contacts:
- 1
- Function:
- Time relay
- Maximum load capacity at AC1:
- 4,000 VA
- Supply Voltage:
- 230 V
- Rated current:
- 16 A
21 Logistics
Product
- Net weight of the product
- 0.124 kg
- Net width
- 35 mm
- Net height
- 91.2 mm
- Net depth
- 63.32 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895761129
- Basic packaging weight
- 0.136 kg
- Basic Packaging Dimensions Height
- 95 mm
- Basic Packaging Dimensions Width
- 42 mm
- Basic Packaging Dimensions Depth
- 72 mm
- Basic packaging volume
- 0.287 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895761136
- Transport packaging weight
- 1.61 kg
- Transport Packaging Dimensions Height
- 210 mm
- Transport Packaging Dimensions Width
- 150 mm
- Transport Packaging Dimensions Depth
- 160 mm
- Transport packaging volume
- 5.04 dm³
- Pallet quantity
- 5,000 pcs
- Customs tariff
- 85364900
25 ETIM
- Impulse program
- Yes
- Width
- 35.8 mm
- Suitable for manual operation
- Yes
- Number of memory locations
- 40
- Weekly program
- Yes
- Number of channels
- 1
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Automatic switching summer-/winter time
- Yes
- Holiday program
- Yes
- Voltage type (supply voltage)
- AC
- Autonomy in years
- 10
- 24 h program
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Depth
- 65 mm
- Cycle program
- Yes
- Shortest switching time channel 1
- 0.02 min
- Potential free switch contact
- Yes
- Height
- 90 mm
- Width in number of modular spacings
- 2
- 60 min program
- Yes
- Frequency supply voltage(Min)
- 50 Hz
- Supply voltage(Min)
- 230 V
- Frequency supply voltage(Max)
- 50 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
