Thermostats ETIREL

Introduction

Thermostat switches are essential components in temperature control systems, automatically regulating temperature by switching an electrical circuit on or off based on the sensed temperature. They maintain a desired temperature range by activating heating or cooling systems as needed.

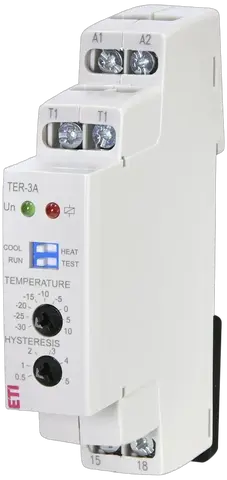

TER-3A

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Temperature range: -30-10 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 10/16 A
Voltage type: AC/DC
Type of contacts: 1xNO
Maximum load capacity at AC1: 4,000 VA
No. of NO contacts: 1

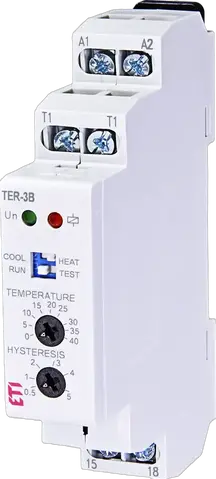

TER-3B

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Temperature range: 0-40 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 10/16 A
Voltage type: AC/DC
Type of contacts: 1xNO
Maximum load capacity at AC1: 4,000 VA
No. of NO contacts: 1

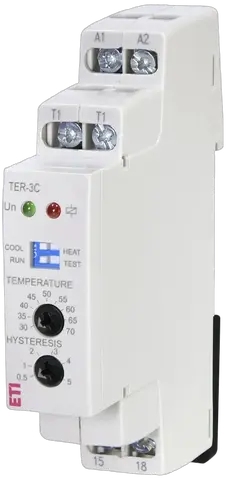

TER-3C

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Temperature range: -30-70 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 10/16 A
Voltage type: AC/DC
Type of contacts: 1xNO
Maximum load capacity at AC1: 4,000 VA
No. of NO contacts: 1

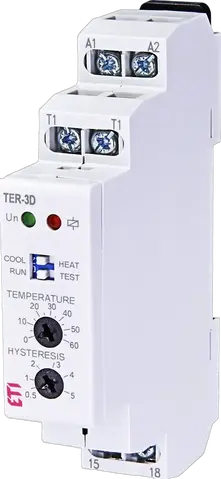

TER-3D

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Temperature range: 0-60 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 16 A
Voltage type: AC/DC
No. of CO contacts: 1
Type of contacts: 1xCO
Maximum load capacity at AC1: 4,000 VA

TER-3F

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Temperature range: 0-60 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 10/16 A
Voltage type: AC/DC
Type of contacts: 1xNO
Maximum load capacity at AC1: 4,000 VA
No. of NO contacts: 1

TER-3G

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-230 V
Temperature range: 0-60 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 10/16 A
Voltage type: AC/DC
Type of contacts: 1xNO
Maximum load capacity at AC1: 4,000 VA
No. of NO contacts: 1

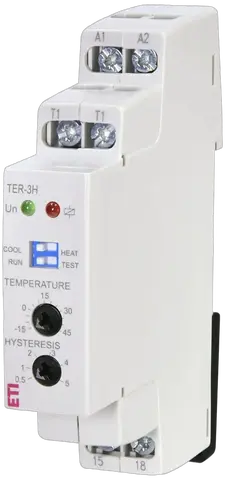

TER-3H

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-230 V
Temperature range: -15-45 °C
Sensor Type: external, termistor NTC
Number of contacts: 1
Rated current: 16 A
Voltage type: AC/DC
Type of contacts: 1xNO
Maximum load capacity at AC1: 4,000 VA
No. of NO contacts: 1

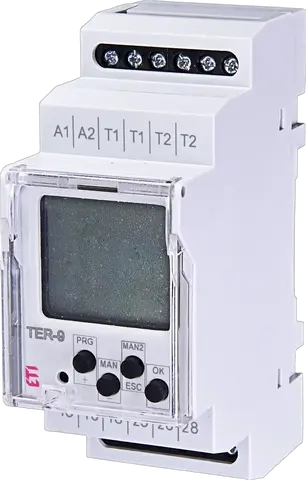

*TER-9 230V

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 230 V
Temperature range: -40-110 °C
Sensor Type: termistor NTC 12Ω at 25°C
Number of contacts: 1
Rated current: 8 A
Voltage type: AC
No. of CO contacts: 2
Type of contacts: 1xCO
Maximum load capacity at AC1: 2,500 VA

TER-7

Class name: Control relay
Function: Monitoring and Control relays
Supply Voltage: 24-240 V
Sensor Type: PTC temperature of motor winding
Number of contacts: 2
Rated current: 8 A
Voltage type: AC/DC
No. of CO contacts: 1
Maximum load capacity at AC1: 2,000 VA

ATC SET

Class name: Control relay
Function: Monitoring and Control relays

DTC SET

Class name: Control relay
Function: Monitoring and Control relays

TZ-0

Class name: sensor
Function: Monitoring and Control relays
Temperature range: -40-125 °C
Sensor Type: NTC 12K 5 %

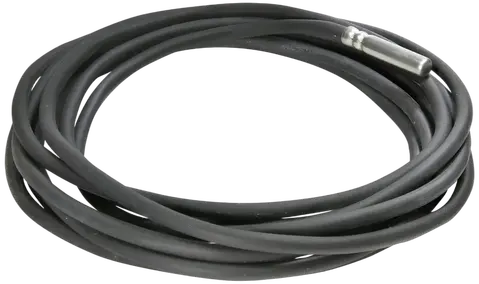

TZ-3

Class name: sensor
Function: Monitoring and Control relays
Temperature range: -40-125 °C
Sensor Type: NTC 12K 5 %

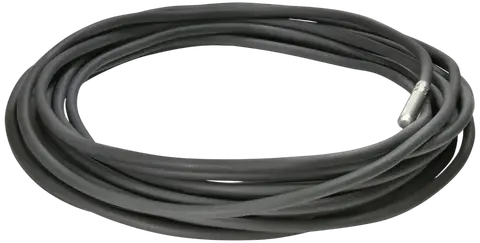

TZ-6

Class name: sensor
Function: Monitoring and Control relays
Temperature range: -40-125 °C
Sensor Type: NTC 12K 5 %

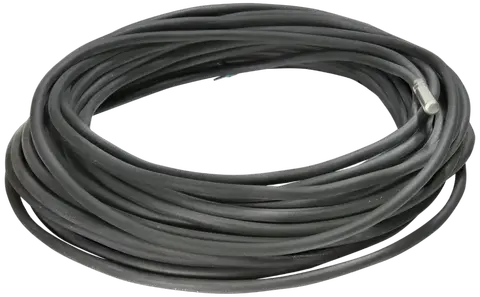

TZ-12

Class name: sensor
Function: Monitoring and Control relays
Temperature range: -40-125 °C
Sensor Type: NTC 12K 5 %

TC-0

Class name: sensor
Function: Monitoring and Control relays
Temperature range: 0-70 °C
Sensor Type: NTC 12K 5 %

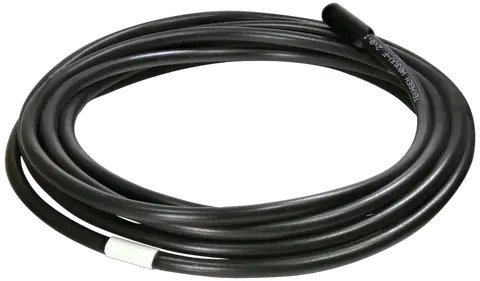

TC-3

Class name: sensor
Function: Monitoring and Control relays
Temperature range: 0-70 °C
Sensor Type: NTC 12K 5 %

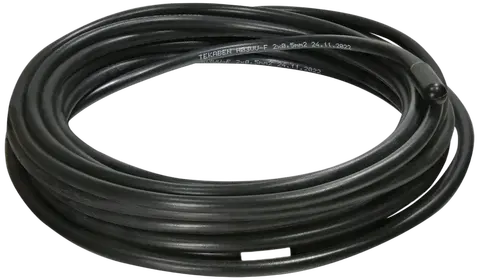

TC-6

Class name: sensor
Function: Monitoring and Control relays
Temperature range: 0-70 °C
Sensor Type: NTC 12K 5 %

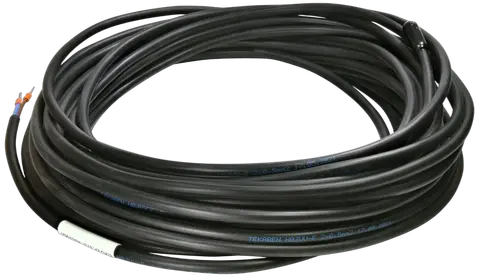

TC-12

Class name: sensor
Function: Monitoring and Control relays
Temperature range: 0-70 °C
Sensor Type: NTC 12K 5 %
