002414021
Obsolete

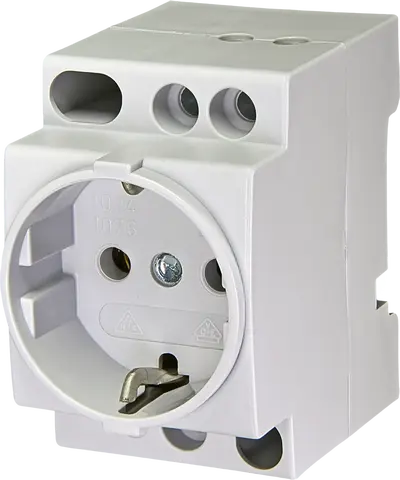

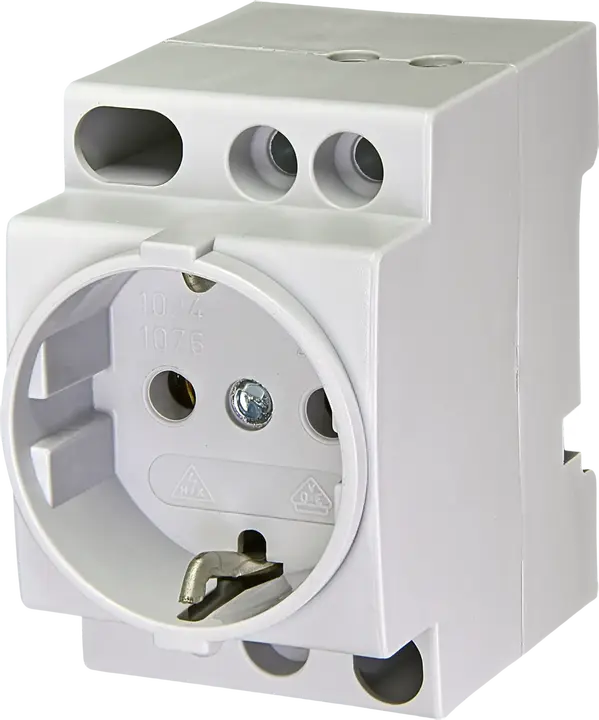

*T-2P+Z schuko Socket
- ETI Code:
- 002414021
- Rated DC voltage:
- 24 V
- Color:
- Grey
- Rated Frequency:
- 50/60 Hz
- Standards:
- IEC/EN 60947-1, IEC/EN 60947-3
- Application:
- IEC/EN 60947-1, IEC/EN 60947-3
- Utilization category:
- AC-22A
- Max input cross-section:
- 6 mm²
- Catalogue Group:
- DIN sockets
- Catalogue Subgroup:
- Schuko
- Function:
- DIN socket
- Rated current:
- 16/10 A
5 Documents
15 Logistics
Product
- Net weight of the product
- 80 g
- Net width
- 45 mm
- Net height
- 72.3 mm
- Net depth
- 65.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5904722987067
- Basic packaging weight
- 0.116 kg
- Basic packaging volume
- 0.18 dm³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895500063
- Transport packaging weight
- 1.73 kg
- Transport packaging volume
- 3 dm³
- Pallet quantity
- 6,000 pcs
- Customs tariff
- 85366990
12 ETIM
- Type of fastening
- Snap mounting (engagement)
- Device depth
- 66 mm
- Nominal current
- 16 A
- Model
- Socket outlet CEE 7/3 (type F)
- Mounting method
- Other
- Device height
- 70 mm
- Halogen free
- Yes
- Number of units
- 1
- Colour
- Grey
- Device width
- 45 mm
- Suitable for degree of protection (IP)
- IP20
- Material
- Plastic
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
