002471652

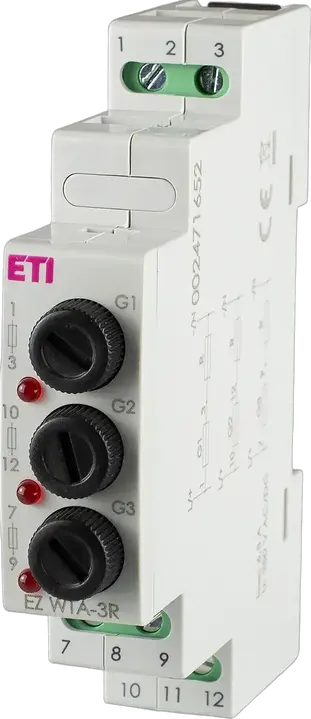

Image of EZ WTA-3R

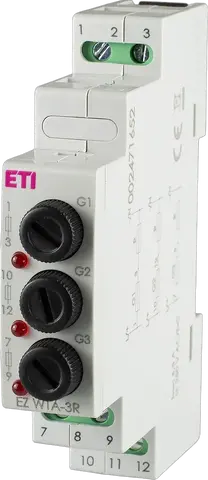

EZ WTA-3R Fuse holder

ETI Code:: 002471652
Type of Installation:: TH 35
Rated current:: 6.3 A
Rated AC voltage:: 250 V
Rated DC voltage:: 250 V
Number of poles:: 1
IP rating:: IP20
Max input cross-section:: 2.5 mm²

Product

Net weight of the product: 0.065 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400104328
Basic packaging weight: 0.07 kg
Basic Packaging Dimensions Height: 20 mm
Basic Packaging Dimensions Width: 95 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0.133 dm³

Transport Packaging

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838400104335
Transport packaging weight: 0.9 kg
Transport Packaging Dimensions Height: 104 mm
Transport Packaging Dimensions Width: 73 mm
Transport Packaging Dimensions Depth: 300 mm
Transport packaging volume: 2.278 dm³
Pallet quantity: 5,268 pcs
Customs tariff: 85361010

Type of current: AC/DC
Dimensions glass fuse: 5x20 mm
Mounting method: Other
Connection type: Screw connection
Rated voltage: 250 V
Rated current: 6.3 A

ETIM Classification – Version 9.0

002471652 Fuse holder EZ WTA-3R EVE/ETIREL Build-in device EVESYS EVESYS DIN socket DIN socket International Automation, signaling and control devices Modular switches and indicators EVE Number of poles: 1 IP rating: IP20 Rated AC voltage: 250 V/250 V Max input cross-section: 2.5 mm² Rated DC voltage: 250 V/250 V Rated current: 6.3 A/6.3 A Fuse holder Rated current: 6.3 A/6.3 A Rated AC voltage: 250 V/250 V Rated DC voltage: 250 V/250 V Number of poles: 1 IP rating: IP20 Max input cross-section: 2.5 mm²
